Product Description

Delivery Time:20-25 working days after receiving advance payment

?

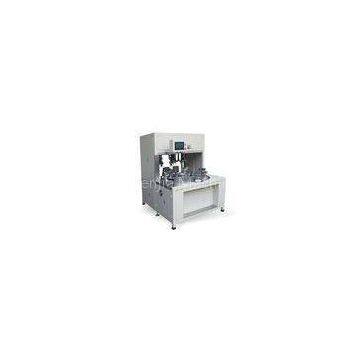

Full Automatic CNC Coil Winding Machine Six Working Wire Reel
?
Description: The machine can tie and twist the cable automatic. The head length, tail length, total winding length can be adjusted. Easy to operate and labors are saved improving output.
?
?

Place of Original	Dongguan Guangdong China(Mainland)
Brand name	Senjia
Usage	Crimping, Insert
Color	ivory
Certificate	CE
Feature	Full-automated

Model of machine	SD-168A
Winding speed	1,500~1,800pcs/hour
Total winding Length	130~210mm
Length of the wire	Max.4000mm
Normal head length	Max.50mm
Normal tail length	More than 120mm
Length of cable tie	Can be adjusted
Number of turns for tie	Can be adjusted
Voltage	AC220/50Hz
Pressure of air source	0.5~0.8Mpa
Dimension	1,300mm1,550mm1,700mm
Weight	480kg

?
PRE-OPERATION PREPARATION
1, Add appropriate lubricating oil to each oil feeding part
2, Whether the air pressure exceeds 4.5KG/cm2
3, Whether the wire reel is in proper position
4, after the machine is started, see if the motor or other mechanical components sound abnormally
Operation Steps:
1, placement of wire: place the plug end of the wire into the wire reel locating block and press starting switch to enable the wire to be processed in each link by attaching to the winding rod until the wire binding is completed
2, adjustment of the wire length: loose the adjusting holder and adjust the wire to the desired length to the left and right, and then tighten the screw
4, Adjustment of wire allowance at the other end: loose the air cylinder base to enable the cylinder to stretch out, and then move the air cylinder base to get the desired length of the wire at the other end, and then tighten the screw.
Products Showing:

?

?
