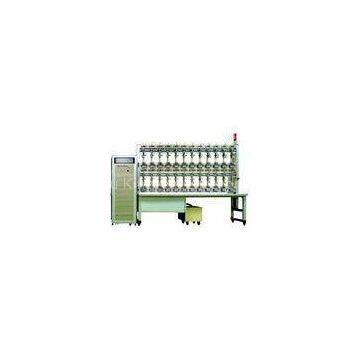

Single Phase Energy Meter Testing Equipment , Electric Meter Calibration Test Bench

Brand Name	KRE		Place of Origin	China
Model Number	KE8101

Delivery Time:1-2 month

Single Phase Energy Meter Testing Equipment , Electric Meter Calibration Test Bench

Name: Energy meter test equipment, electric meter test bench Meter position: 12 / 24 / 48 / 60 position Phase: Single Phase Accuracy Class:? 0.05% Power: Electronic Usage: Auto Electric meter test and calibration Voltage Output: 24V – 300V Current Output:? 1mA – 120A Operating Temperature: -10°C -- +40°C Adopt multi-serial port system

Energy Meter Testing Equipment For Single Phase Electric Meter Calibration

This system is used for the test of various single phase electric and mechanical meter, multi-function meter, PLC meter, multi-rate meter and prepayment meter.

Highlight: Integrated / Separated aluminum alloy structure, light and reliable, flexible choices The number of meter positions can be chosen from 12-60 Perfect alarming protective function, auto protection of the short circuit of voltage, the open circuit of current, and overload. Full automatic, semi automatic and manual operation available Supporting bar code input, which increase the efficiency of input Simultaneous test of the energy meters with same specification, different constants and different classes. The test of open circuit for Neutral voltage (optional) Auto mark locking increases the efficiency of test Forward and reverse active energy / forward and reverse reactive energy error test Creeping and starting test Standard deviation, 24 hour variation test Influencing quantity test of voltage, frequency, harmonic Calibration and verification of energy constant Powerful computer management system, easy and user-friendly Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters (optional) ? Main Specification:

	KE8101-12	KE8101-24	KE8101-48	KE8101-60
Number of meter position	12	24	48	60
Accuracy	±0.05%
Voltage output
Output range (P-N)	24V – 300V
Output power of voltage	250VA	500VA	1000VA	1500VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate	Better than ± 0.01%
Distortion factor	Better than ± 0.3% (linear resistance load)
Harmonics output	2nd -21st free programmable
Current output
Output range	1mA – 120A (or customized,Max. 230A)	1mA – 120A
Output power of current	350VA	750VA	1500VA	2000VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate	Better than ± 0.01%
Distortion factor	Better than ± 0.3% (linear resistance load)
Harmonics output
