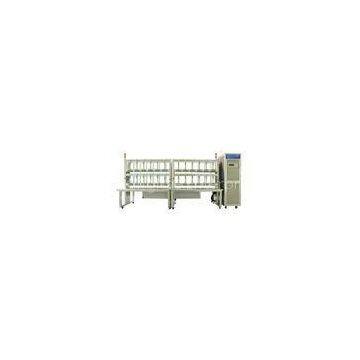

24 Position 3 Phase Auto Electric Energy Meter Test Equipment Calibration 0.05% Accuracy

Brand Name	KRE		Place of Origin	China
Model Number	KE8301

Delivery Time:1-2 month

24 Position 3 Phase Auto Electric Energy Meter Test Equipment Calibration 0.05% Accuracy

Phase: Three Phase Accuracy Class:? 0.05% Name: Energy meter test equipment, electric meter test bench Meter position: 6 / 12 / 24 / 48 position Usage: Auto Electric meter test and calibration Power: Electronic Voltage Output: 3×(24V – 300V) Current Output:? 3×(1mA – 120A) Operating Temperature: -10°C -- +40°C Adopt multi-serial port system

24 Position Enery Meter Testing Equipment for Electric Meter Calibration 3 Phase

KE8301 is used for the test of three phase four wire (3P4W) and three phase three wire (3P3W) electrical and mechanical meters, multi-function meters, smart meters, and multi-user meters of electric power company, meter manufacturing company and institutes of metrology, it can also do the test and calibration of single phase energy meters

Highlight: Integrated/separated aluminum alloy structure, light and reliable, flexible choices Meter positions can be chosen from 6-24 Auto protection of short circuit of voltage, open circuit of current, and overload. Test of neutral current (optional) Auto mark locking increases the efficiency of test Full automatic, semi automatic and manual operation available Supporting bar code input, which increase the efficiency of input Simultaneous test of the meters with same specification, different constants and different classes. Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters( optional) Test of tilt impact (optional) Forward and reverse active energy/ Forward and reverse reactive energy error test Creeping and starting test Standard deviation, 24 hour variation test Timing error test Influencing quantity test of voltage, frequency, harmonic Calibration and verification of constant Register indicating value, register combination error test Powerful computer management system, easy and user-friendly Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms ? Main specifications:

	KE8301-6	KE8301-12	KE8301-24	KE8301-48
Number of meter position	6	12	24	48
Accuracy	± 0.05%
Voltage output
Output range (P-N)	3×(24V – 300V)
Output power of voltage	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate	Better than ± 0.01%
Distortion factor	Better than ± 0.3% (linear resistance load)
Harmonics output	2nd -21st free programmable
Current output
Output range	1mA – 120A (or customized,Max. 230A)	3×(1mA – 120A)
Output power of current	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate
