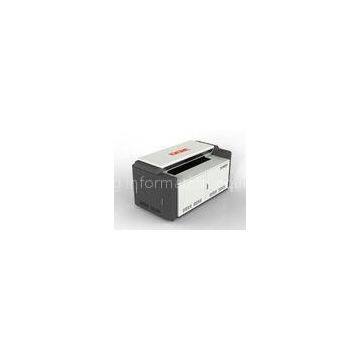

Thermal / UV CTP / CTCP Plate Making Prepress Printing Equipment

Model

X-0322T

X-0482T

X-0642T

Light Channels

32

48

64

Output Speed(P/h)

17

23

29

P size:1030mm×800mm

Light Source

830 nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%～99%

Register Accuracy (mm)

＜0.01

Plate Size (mm)

Max. 1160×940；Min. 450×320

Suitable Plates

Various thermal ctp plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃

Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz

Model

X-0322U

X-0482U

X-0642U

Light Channels

32

48

64

Output Speed(P/h)

17

23

29

P size:1030mm×800mm

Light Source

405nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%～99%

Register Accuracy (mm)

＜0.01

Plate Size (mm)

Max. 1160×940；Min. 450×320

Suitable Plates

Various uv-ctp,ctcp Plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Pl
