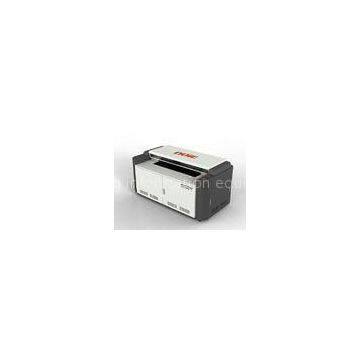

405 nm Laser Diode Automatic Balance CTCP Platesetter, CTCP Machine

1. Name: CTCP 32 channels platemaking prepress machine

2. Application: Worked in pre-press printing process,

3. Feature:? digital process workflow, high precision dot, low cost UV(CTcP) plates

405 nm Laser Diode Automatic Balance CTCP Platesetter, CTCP Machine

Specifications:

Description:

DOIE UV-CTP 32 channels uses the most advanced and stable guide rail technology, using automatic loading way and 405nm laser diode, digital process workflow, high precision dot, low cost UV(CTcP) plates, reducing the cost.

DOIE UV-CTP uses special laser diode and external drum design, to ensure the biggest energy transfer efficiency and exposure precision.

We use reliable control circuity system.By using control method of negative feedback, the circuitry achieve constant-current control, DA output power adjust continuously, LD output follow control signal, which output pulse by using on-off mode, therefore the standby power is low.

Also with ultrahigh frequency MOS pipe and high speed operational amplifier made the voltage pulse rise and fall time on the LD shortest.

Applications:

Worked in pre-press printing process, it can be used to connect with bridge and stacker to make up an integral pre-press workflow,which will improve production efficiency and reduce labour cost. UV-CTP can fit the conventional plate whose cost is lower than thermal plate. That is why UV-CTP will be the main stream pre-press equipment in future development.

Competitive Advantage:

1: Precise guiderail chassis. Manual entire scrape.

2. Independent vacuum structure, effectively absorb various plates.
