2 - 12 Strings Smart Combiner Box TUV 1000V DC , OEM Solar Combiner Box

2 - 12 Strings Smart Combiner Box TUV 1000V DC , OEM Solar Combiner Box

PC for out door ,ABS for indoor long life PV junction cases, with PC enclosure for out door ,ABS ,plastic for indoor use PV junction boxes ,transparent smart solar combiner boxes 6 strings

Quick Detail:

In a large solar photovoltaic (PV) array, multiple solar modules are connected in series in a string to build the voltage up to proper levels for the inverter. Multiple strings of solar modules are then combined together in parallel to multiply the string output currents to higher levels for input into the inverter.

Description:

The combiner box is a device that combines the output of multiple strings of PV modules for connection to the inverter. It is typically used in the larger commercial and utility scale PV power plants (greater than 50kW). The combiner box commonly houses the input overcurrent protection fuse assemblies for several strings (from as few as 2 strings to as many as 32), as well as the combined bus of those inputs into a single main output.

Normally PV combiner box may also house several other components for the site, such as a DC disconnect, surge protective devices and string monitoring hardware.

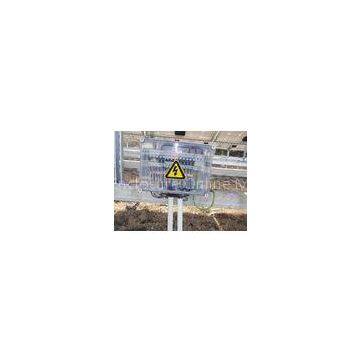

Solar Combiner Box (PC/ABS/PLASTIC)
Key features:?

1.According to the function, it will have a standard combiner box (SAB) and an intelligent combiner box (SCB).

According to different working environment, it will have polycarbonate (PC) and steel made boxes .

2.We choose all materials strictly on quality first principle. All components comply with DIN and VDE standards, and all adhere to the highest quality standards.?
3.CE, TUV, CQC certified.?

4,Meet outdoor installation requirements, IP66 . With anti-UV, anti-acid, anti-alkali, moisture, mildew, rodents and so on functions.

5,All components meet rated voltage DC1000 V requirements.?

6.With fuses on Inputs, switches on outputs, and SPD in both poles.

7,Can monitor the current of each string, system voltage, status of circuit breaker and SPD. Can display and read the data on both local and background part. Can accurately identify the fault and its position(only applicable to SCB-II)

Applications:

The increasing demand of energy, the exhaustion of fossil fuels and the continuously serious pollution makes the effect of renewable energy of vital importance. As one source of renewable energy, solar energy is playing a more and more important role.

Solar can be transformed into electricity that can be used directly or fed into the grid according to national policy. Longmax Technology is focused on developing and offering technology and products for sustainable solar energy development. Our solar solutions are:

In the field of sustainable renewable photovoltaic energy, our core competencies products include:

Solar combiner boxes, AC/DC distribution cabinets/boxes, intelligent monitoring devices, portable AC/DC solar generators, multi-function power systems, environmental monitoring instruments, PV prevent reverse diodes and monitoring systems used in PV power plants.

Our history is full of firsts and our products are installed in a huge number of solar power plants all over China and the world. Till now, the total installed capacity of Longmax is over 2GW worldwide.

Our customers include entities and enterprises dedicated to the renewable energy field, solar power plants and agents/distributors around the world who are interested in the new PV industry.

Specifications:

In a large photovoltaic (PV) grid generation system, it is generally to install a DC combining device between the PV module and inverter in order to reduce the connection between PV module and inverter, facilitate maintenance and improve reliability. Our intelligent photovoltaic combiner box with SPD series are especially designed to meet the requirement, which can provide a solution for PV power generation system matching with photovoltaic inverter. According to the input voltage of the inverter, a fixed number of similar PV modules can be connected to form a PV array by using PV array combiner box. Then different channels of PV arrays can be combined into the PV combiner box. Its output can be connected to inverter by way of circuit breakers with SPD protection.

To ensure body safety and reducing the danger. Longmax solar combiner has features as below:
