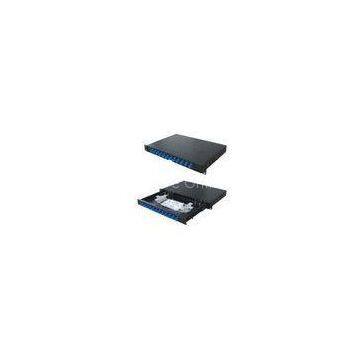

Sliding Cold rolled steel fiber terminal box for optical cable termination
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Sliding Rack Mounted Fiber Optic Terminal Box for Optical network
-
3U , 4U Slidable Fiber Optic Patch Panel for Local Area Networks
-
Dummy drawer 48 port Fiber Terminal Box for FC SC ST Adapter / CATV networks
-
Durable fiber termination box for Data communications networks
-
24port 2U ODF Fiber Optic Distribution Box with Welding Module Tray
-
Optic Distribution Frame Fiber Optic Distribution Box , 12port Rak Mounted ODF Unit Box
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | RMF-1U |
Product Description
Certification:ROHS, SGS
Sliding Cold rolled steel fiber terminal box for optical cable termination
Quick Detail:
Box type: Fixed type, Sliding type, Dummy drawer type Suitable Adapter: FC, SC, ST, LC Adapter port type: FC(Simplex), ST(Simplex), SC(Simplex/Duplex), LC(Duplex) Max capacity: 1U(12core/24core), 2U(48core), 3U(72core), 4U(96core) Material: Cold rolled steel Max. fibers of splice tray: 24coreFeatures:
Easy to repeated opening and usingCould deploy valve and Grounding device
19\" standard slide-out design, easy and convenient on assembling
Cabinet surface covered with electrostatic powder coating, luxury and beautiful
Bend radius of optical fiber more than 40mm
Easy to access the back and splice tray
Apply for SC/ST/FC/LC pigtail and adapter
Applicable in the branch connection of optical cable terminationApplication:
LAN/WAN Widely used in FTTH access network Telecommunication Networks CATV Networks Data communications Networks Local Area NetworksSpecification:
| Type | RMS-1U | RMF-2U | RMS-4U |
| Size(mm) L*W*H |
430*3000*1U | 430*300*2U | 430*300*4U |
| Max Capacity (Core) | 48 | 96 | 192 |
| Outer Carton Dimension(mm) | 485*420*350/5pcs | 500*355*550/4pcs | 500*350*540/1PCS |
| Outer Carton Weight(Kg) | 27.5/5pcs | 26.3/5pcs | 18.9/PCS |
Technical Data:
| Model | RMF-1U |
| Size(mm): L*W*H | 430*300*1U |
| Max capacity of splice tray: | 24core(1U) |
| Optical fiber winding radius: | ≥40mm |
| Fiber length left in tray: | none |
| Fiber length left in tray: | ≥1.6m |
| Fiber capacity: | 48 cores |
| Working temperature: | - 400°C ~ + 600°C |
| Lateral pressure-resistance: | 500N |
| Shock-resistance: | 750N |
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
