2 - 12 Strings Solar Array Junction Box Anti UV With DC Fuse / SPD

2 - 12 Strings Solar Array Junction Box Anti UV With DC Fuse / SPD

Anti UV,ultraviolet radiation proof PV inverter connnector,Outdoor use long life ultraviolet radiation proof PV panel wire connection box,flame-resistant fire protection solar module junction boxes 8 strings
?
?
Quick Detail:
?

Wide range DC input, the maximum open circuit voltage reaches 1000VDC

Remote monitor, RS485 communication optional

Simplify PV system wiring

Comply with the requirement of outdoor installation

PV only DC fuse

PV only SPD

Customized on customer\'s demand

?

Specifications:

In a large photovoltaic (PV) grid generation system, it is generally to install a DC combining device between the PV module and inverter in order to reduce the connection between PV module and inverter, facilitate maintenance and improve reliability. Our intelligent photovoltaic combiner box with SPD series are especially designed to meet the requirement, which can provide a solution for PV power generation system matching with photovoltaic inverter. According to the input voltage of the inverter, a fixed number of similar PV modules can be connected to form a PV array by using PV array combiner box. Then different channels of PV arrays can be combined into the PV combiner box. Its output can be connected to inverter by way of circuit breakers with SPD protection.

To ensure body safety and reducing the danger. Longmax solar combiner has features as below:

?
Technical Data
?

Install:

Install the Box on the wall or Photovoltaic bracket

With 4 M8*30 Stainless steel screws (screw level 8.8)
Open all fuse holder before connecting
Status of breaker:Off
Distinguish positive pole cable &negative pole cable
Connected to the Inverter
Use cross screwdriver (Tightening torque, min. 2Nm, max. 2.5Nm)
Before closed fuse holders, make sure the open circuit voltage equal to every road ,the differ is ±30VDC.
2. Each SCB cables to Inverter must be all the same, cannot appear positive, negative reversal.
3. Operation of the circuit breaker:
?

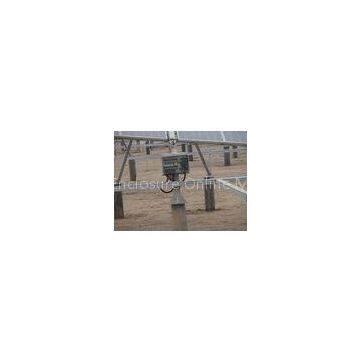

Project:9MW PV power plant ,Dunhuang,China ?Guodian

Product quantity:180 units

Product name:16 strings intelligent? solar combiner box, IPGrade:65
Product detail:

10 strings intelligent? solar combiner box*117units

12 strings intelligent? solar combiner box,*63units

Project completion date:November,2012

Translation in English:

Users report of Longmax solar combiner box

We employ the solar combiner box made by Wuxi Longmax Technology CO.,LTD, in the project? ________________

The solar combiner boxes have been running stable, without any fault since it is installed. Longmax’ solar combiner boxes are easy installation and maintenance. Their design is very reasonable and quality is very good, All exceeded the national standard. Wuxi Longmax Technology CO.,LTD ?also has good engineeri
