Product Details
| Brand Name | Gaoxin;OEM | Place of Origin | China | |
| Model Number | GJS20-DM01A-02a-plc |
Product Description
Certification:ISO9001

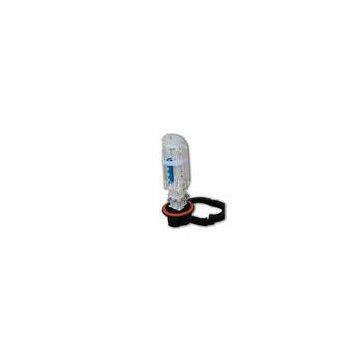

4 trays fiber optic splicing box with Dome mechanical type ABS PP
Quick Detail:
Dome mechanical type fiber optic splice closure.1 big round port+4 small round ports max for 4 cables+16cable ?in &out;Max 4 trays and 96 cores;Suit for 8-16mm cables;Used for wall mounting,pole mounting,man hole,duct mounting , pipeline,direct buried, mechanical seal..
Description:
1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)
3. Number of cable ports: 1 big round port and 4 small round ports, max for 4 cables+16X6mmcable
4. Maximum Trays: 4 trays
5. Maximum Cores:96(singlel core)
6. Dimension (HxD):430mm *130 mm
7. Package material:Carton
8. Weight:2.5-3.0Kg
9. Cable diameter range:8-16mm
10. Sealing way of cables:Mechanical seal
11. Quality warrenty:2 years
12. Life span:more than 25 years
Applications:
Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..
Specifications:
|
Model |
No.of ports |
Cable range |
?Max trays |
Max Capacity |
Dimensions |
|
GJS20-DM01A-02a-plc |
5 |
8-16mmX4+16x6 |
4 |
96 cores |
430×ф130mm |
Competitive Advantage:
Mechanical seaing,easy & fast installation with no special tools Superior sealing performance(free sample for testing) The closure can be repeatly used many times. The cables can be fixed via 3 points,safe and reliable Enough space for surplus fibers inside the closure Flexible branching for fibers loose leaf type of splice tray fixing,easy operation Modular fiber management systemContact Us
