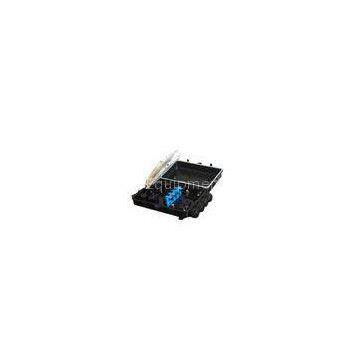

IP68 pipeline wall mount fiber splice enclosure 2 in and 2 out
- T/T L/C D/P D/A
- 7 days
You May Like
-
ABS PP IP68 Aerial Splice Enclosure IP68 3 trays for direct buried
-
manhole Pole Mount Bracket Dome type fix on pole , pole mounted
-
indoor fiber optic terminal box with 12 cores SC FC ST LC adaptor
-
12 cores outdoor FTTH Fiber Terminal Box for Wall mounted ABS
-
Manhole Fiber Optic Splice Box Dome mechanical type with PP ABS IP68
-
432 core IP68 Fiber Optic Splice Enclosure Vertical type mechanical sealing
Product Details
| Brand Name | Gaoxin or OEM | Place of Origin | China | |
| Model Number | Gjs20-hm01A-36core/tray |
Product Description
Certification:ISO9001
IP68 pipeline wall mount fiber splice enclosure 2 in and 2 out
Quick Detail:
High quality horizontal type optical fiber closure from China supplier.
Inline type,max for 2 cables inlet and outlet,max 4 trays&144 cores, featuring max 24 pcs adapter ports in FTTH architectures.The closure can be used in direct buried,manhole,aerial,pipeline..etc
Two cable ports in every side.Max 4 trays&144 cores.Made by PP and ABS material.Fiber optic adaptors can be installed inside,used in FTTH and other newwork projects. 2in and 2 out
Description:
1. Protection grade:IP68
2. Material:PP,ABS(first hand raw material)
3. Number of cable ports: 2 in and 2 out
4. Maximum Trays: 4 trays
5. Maximum Cores:144(singlel core)
6. Dimension (HxD):
7. Package material:Carton
8. Weight:2.5-3.0Kg
9. Cable diameter range:
10. Sealing way of cables:Mechanical seaing by rubber
11. Quality warrenty:2 years
12. Life span:more than 25 years
Applications:
FTTH project,direct buried,manhole,aerial,pipe line..etc
Specifications:
|
Model |
No.of ports |
Cable range |
?Max trays |
Max Capacity |
Dimensions |
|
GJS20-HM01A-36core/tray |
2 in and 2out |
8~25 |
4 |
144 |
390X198X96 |
Competitive Advantage:
Easy & fast installation with no special tools. Superior sealing performance(free sample for testing) The closure can be repeatly used many times. Enough space for surplus fibers inside the closure Flexible branching for fibers loose leaf type of splice tray fixing,easy operation Modular fiber management systemContact Us
