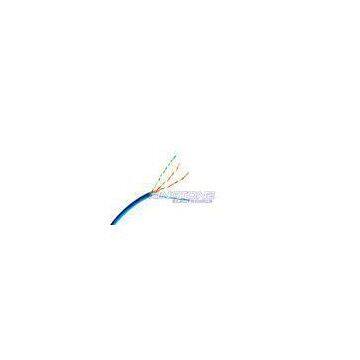

UTP CAT5E Network Cable 4 Pairs 24AWG Copper Clad Aluminum PVC (CM,CMX)

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KINGTONE OR OEM		Place of Origin	China
Model Number	UTP CAT5E 4PR Copper Clad Aluminum

Product Description

Delivery Time:Normally 15 days
Certification:CE,RoHS, VDE,UL,CUL,LPCB

UTP CAT5E Network Cable 4 Pairs 24AWG Copper Clad Aluminum PVC (CM,CMX)

Quick Detail:

UTP CAT5E Network Cable Lan Cable 4 Pairs 24 AWG?Copper Clad Aluminum?Conductor PVC Jacket Defined in ANSI/TIA/EIA-568-A, with Clarification in TSB-95 1000FT Pull Box, Spool, Pallet MOQ: 30.5KM

Description:

KINGTONE?NETCONNECT?Enhanced?Category?5 (Cat5)?UTP cables?exceed?TIA/EIA-568-B.2,

ITA/EIA?568-C?and?ISO/IEC?11801?Class?D,?IEC61156-5,?EN50288?and?EN50173?

performance?requirements,?providing?extra?headroom?for?a?more?robust?cabling?system.?

They?comply?with?all?of?the?performance?requirements?for?current?and?proposed?applications

?such?as?Gigabit?Ethernet?1000Base-T?IEEE802.3ab,100BASE Tx,?token?ring,?155?Mbps?ATM,?

100?Mbps,?1.2Gbps,?TP-PMD,?ISDN,?analog?(Broadband,?Baseband)?and?digital?video?and?

analog?and?digital?voice?(VoIP)?and?VoIP?Camera?application.?

The?cable?is?available?in?white,?gray,?blue?and?yellow,?and?packaged?as?wooden?reels,?

reelin-?box?and?pull?box.

KINGTONE?using?best?raw?material?and?best?worker?to?produce UTP?CAT?5E to?meet?

high?performance?in?practical?application.

Because?of?good?managing?methods,?KINGTONE’S?price?of?UTP?CAT?5E is?not?high?

although?our?quality?is?really?high.

KT0265?UTP?CAT5E?Network?Cable?4Pairs?24AWG?Copper?Clad? Aluminum?PVC(CM,CMX)
Application&?Industry?Standard:???
Telephony?Voice?Wiring,10?Base-T,100?Base-T4,UL?Subject?444,EIA/TIA568?&?ISO/IEC?11801
100?Mbps?TP-PMD(ANSI?X3T9.5),TIA/EIA-568-B.2?,?ISO.IEC?11801?Class?D
IEC61156-5,?IEC60332-1,?EN50288,?EN50173-1
?
Construction
Center?conductor	4x2x0.5mm?Copper?Clad?Aluminum?
Dielectric	0.91mm?PE
Outer?jacket	5.2±0.1mm?PVC(CM,CMX)
Insulation?colors	Blue,White/Blue????????????????????
Orange,White/Orange
Green,White/Green?
Brown,White/Brown
?
Electrical?Characteristics?at?20?°C
Impedance?	100?±?15?Ω
DC?resistance(max)	8.9?Ω/100m??@20℃
Mutual?capacitance(max)	5.6?pF/100m?@1kHz
Delay?Skew	45
Voltage	300?Volts?AC?or?DC
?
Mechanical?Characteristics?at?20?°C
Propagation?Delay(max)	540?ns@10MHZ
Min.Bending?radius	4×outside?diameter?of??Jacket
Operating?Temperature	-20?℃?to?60℃
?
Performance?Characteristics
Frequency?	Attenuation?(Max.)	NEXT?????(Min.)	PS-NEXT	ELFEXT	PS-ELFEXT	Return?Loss
1?MHz	1,9?dB/100m	66?dB	63?dB	64?dB	61?dB	20?dB
10?MHz	6,3?dB/100m	51?dB	48?dB	47?dB	44?dB	23?dB
16?MHz	8,0?dB/100m	48?dB	45?dB	44?dB	41?dB	25?dB
20?MHz	9,9?dB/100m	46?dB	43?dB	42?dB	39?dB	25?dB
40?MHz	12,8?dB/100m	44?dB	41?dB	34?dB	31?dB	23?dB
60?MHz	16,0?dB/100m	42?dB	39?dB	28?dB	25?dB	22?dB
100?MHz	21,0?dB/100m	36?dB	33?dB	25?dB	22?dB	21?dB
?PVC?–?Polyvinylchlorid???AWG?-?American?Wire?Gauge?*?AL/PE?-?Aluminium/Polyeth
