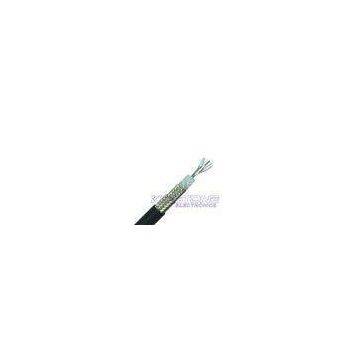

RG 214 Coaxial Cable 7.24mm Solid PE with 7 0.752mm Silver Plated Copper 50 Ohm

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KINGTONE OR OEM		Place of Origin	China
Model Number	RG 214 Coaxial Cable

Product Description

Delivery Time:Normally 15 days
Certification:ISO, CE, RoHS, UL

RG 214?Coaxial Cable 7.24mm Solid PE with 7 × 0.752mm Silver Plated Copper 50 Ohm

Quick Detail:

RG 214 Signal Coaxial Cable 7 × 0.752mm Silver Plated Copper 7.24mm?Solid PE 8.40mm?Double Silver Plated Copper Braiding 10.80mm ?PVC 100M, 200M, 300M, Plastic / Wooden Spool, Carton MOQ:5KM

Description:

KT0409 RG 214 Signal Coaxial Cable, 7.24mm Solid PE, 7×0.752mm Silver Plated Copper

Coaxial cable, or coax is a type of cable that has an inner conductor surrounded?by a tubular insulating layer, surrounded by a tubular conducting shield.?Many coaxial cables also have an insulating outer sheath or jacket. The term coaxial?comes from the inner conductor and the outer shield sharing a geometric axis.?

Coaxial cable was invented by English engineer and mathematician Oliver Heaviside,?Coaxial cable differs from other shielded cable?used for carrying lower-frequency signals, such as audio signals, in that the dimensions?of the cable are controlled to give a precise, constant conductor spacing, which is needed?for it to function efficiently as a radio frequency transmission line.

Applications:

RG series cable originally created to support WWII military application.?These cable quickly became the products of choice for commercial wireless?applications once they hit the surplus market, such as microwave systems,military aerospace,?military ground-based communication systems...

KT0409?RG?214 Signal Coaxial?Cable,?7.24mm?Solid PE, 7×0.752mm?Silver?Plated?Copper
Construction?Parameters:
??Inner?Conductor	7×0.752mm??????????	Silver?Plated?Copper??
??Dielectric	7.24mm?????????	Solid?PE?
??Shield	Nom.?8.40mm???	Double?Silver?Plated?Copper?
??Jacket	10.80mm???????????????????	PVC?(Color?by?your?choise)
?
Electrical?Characteristics:
??Capacitance	101.05?pF/m
??Impedance	50?Ω
??Velocity?of?Propagation?	0.66
??Max?Operating?Voltage(KVMS)	3.7
??Operating?Temp?Range??(PVC)	-25?℃?to?70℃
??RoHS	YES
?
Attenuation(20℃):
Frequency?(MHZ)????????????	?	Max?Attenuation?(dB/100m)
100	?	6.60?
400	?	14.10?
1000	?	24.00?
3000	?	46.60?
5000	?	64.60?
11000	?	110.90?
?
Order?Informations:
??Marking	KINGTONE?RG?214?COAXIAL?CABLE??XXX?M??
??Inner?Package	100m/Roll,?100m/Spool,305m/Spool?
??Outer?Package	Carton,?Color?Box,?Pallet?(or?Per?customer\'s?request)
??Delivery?time	Normally?15?days?after?received?the?deposit.
??More?informations?	please?contact?with?us.

Competitive Advantage:

1, ?From raw materials to final products, we perform intense quality checks to maintain our product quality:

? ? ?A, Incoming material inspected by QC.

? ? ?B, Manufacturing Process Control

? ? ?C: Workers trained daily/weekly/monthly

? ? ?D: Work instructions manual at each work station

? ? ?E: 5S system implemented

? ? ?F: Machine maintenance procedure

? ? ?G: Quality Control and Final Inspection?

? ? ? ? ?The QC staff will check the material, process product

? ? ? ? ?and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

? ? needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

? ? We are skilled at effective communication to interact with customers.

? ? In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime deliver
