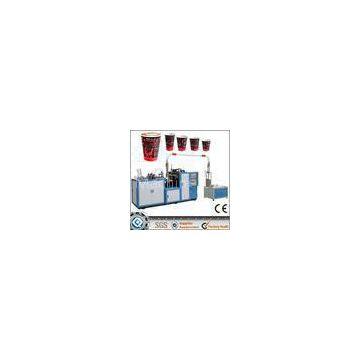

PE Film Coated Paper Tea Coffee Cup Making Machine For Hot Drink / Cold Drink

PE Paper Coffee?Tea Cup Making Machine With High Speed 50 - 60 Pcs?Minute

Quick Details

Description:

?Model ZBJ-H12 Paper Cup Machine is an automatic machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and. the advantages of humanism design.

Specifications:

?Model: ZBJ-H12 Paper Cup Machine

?Paper Cup Size: 3oz-12oz (mold exchangeable)

?Raw Material: One-side PE (polyethylene) film coated / laminated paper

Ultrasonic machine can be produce both single and double PE paper

?Suitable paper weight: 140-350 gsm

?Productivity: 50-60 pcs/ min

?Power Source: 220V/380V 50Hz or other required

?Total Power: 4.8KW

?Total Weight: 1500KG

?Package Size(L x W x H): 2700 x1200 x1600mm

?Working Air Source: 0.4Mpa, Air Out-put:0.6 m3/minute

?Making Double PE coated paper cups, need to buy an air compressor

Competitive Advantage:

? We using Divided box is 125 type, which has two years warranty.
? We using Speed reducer: 1:30 100 type
? We using φ30 import steel shaft for the machine
? We using 3 Cam to control the folding process.
? We using two times paper feeding process.
? We using Multilayer suckers for the paper taking

Applications:

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc

Making Process

?Printing Step:

The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.

?Cutting Step:

In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.

?Paper Forming Step:

You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.

Packing:

? FCL: paper cup machine with wood tray and plastic film.

? LCL: paper cup machine with wood box and plastic film.

? We will Spraying oil in paper cup machine for keeping rust away
