Home > Products > Paper Bowl Machine > One - side PE Paper Bowl Making Machine For Ice Cream Soup 35 - 40 Pcs / Min

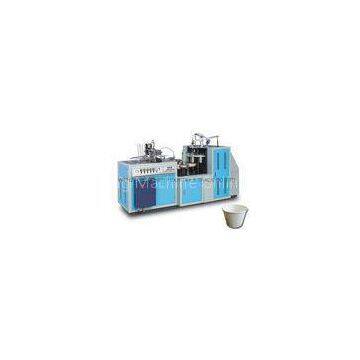

One - side PE Paper Bowl Making Machine For Ice Cream Soup 35 - 40 Pcs / Min

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	QC		Place of Origin	China
Model Number	ZW-A35

Product Description

Delivery Time:In 30 working days
Certification:SGS, CE

Ice Cream Soup Paper Bowl Machine To Produce Paper Bowls,35-40 Pcs/Min

Quick Details:

Paper Bowl Size	20 oz-50 oz (mold exchangeable) height up to 125 mm
?Productivity	35-40 Pcs/min
Warranty	1 years
Usage	Hot drink or Cold drink
after-sales service	Free training, Engineers available to service machinery overseas

Description:

Model ZW-A35 Paper Bowl Machine is an automatic machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and. the advantages of humanism design.

Specifications:

Model	ZW-A 35 Paper Bowl Machine
Paper Bowl Size	20 oz-50 oz (mold exchangeable) height up to 125 mm
Raw Material	One-side PE (polyethylene) film coated / laminated paper Ultrasonic machine can be produce both single and double PE paper
Suitable paper weight	140-450 g/㎡One-side or two PE coated paper
Productivity	35-40 Pcs/min
Power Source	220V/380V 50Hz or other required
Total Power	6 KW
Total Weight	2500KG
Package Size(L x W x H)	2830 x1450 x1900mm + 1050x570 x750mm;
Working Air Source	0.6Mpa, Air Out-put:0.6 m3/minute
Available to make any special size paper bowl machine and mould

Competitive Advantage:

1.We use two Gear Box (one is 140 type and another one 100 type)

2.we use two tension bars in our machine

3.We using φ30 import steel shaft for the machine

4.We using 3 Cam to control the folding process.

5.We using two times paper feeding process.

6.We using Multilayer suckers for the paper taking

Applications:

Produce bowls for ice cream, soup, noodle etc

Processing Step:

Printing Step: The PE coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the bowls.

Cutting Step: In this step, you should decide the size of the bowl, so we can cut the paper fan in decided size.

Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper bowl machine. Then the paper bowls are formed, we can use the bowls and enjoy delicious drinks.

Packing:

FCL: paper bowl machine with wood tray and plastic film.

LCL: paper bowl machine with wood box and plastic film.

We will Spraying oil in paper bowl machine for keeping rust away
