Automatic Hexagonal Mesh Gabion Mesh Packing Machine Working Stroke 700mm

Automatic Hexagonal Mesh Gabion Mesh Packing Machine Working Stroke 700mm

Quick Detail:

1.?Nominal?pressure:?80KN

2.?Working?stroke:?700mm

3.?Pressure?plate?downwards?running?speed:?≥35mm/s

4.?Pressure?plate?upwards?running?speed:?≥50mm/s

5.?Machine?packing?size?(L*W*H):?3700x2450×1250mm

Descrition:

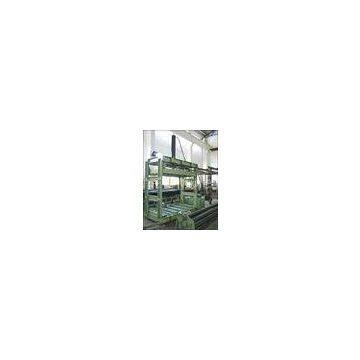

Hexagonal?mesh?Packing?Machine

Hexagonal?mesh?Packing?Machinery?is?dedicated?for?gabion?mesh\'s?packing,?press?the?gabion?to?smaller?

CBM.?The?machine?has?an?independent?power?sector?and?electrical?systems,?using?the?button?to?centralized?

control.?The?machine?consists?of?rack,?pressure?plate,?oil?cylinder,?oil?pump?unit,?tank,?electrical?box?and?so?

on.?It?can?produce?as?your?requirement.

Operating?principle

When?the?machine?work,?oil?pump?unit?provide?the?pressure?oil?via?safety?valve?limit?the?pressure?and?enter?

manual?reversing?valve,?when?manual?reversing?valve?work?on?the?left,?pressure?oil?enter?on?the?oil?cylinder?

via?piston,?piston?rod?pull?pressure?plate?run?downwards,?the?down?oil?of?the?oil?cylinder?stream?back?to?tank?

via?reversing?valve.?When?Manual?reversing?valve?work?in?the?middle,?the?up?and?down?oil?of?oil?cylinder?will?

be?closed?by?reversing?valve,?pressure?plate?can?keep?pressure?and?stay?on?anywhere,?oil?cylinder?

discharge?loads?via?reversing?valve,?when?reversing?valve?work?on?the?right,?pressure?oil?enter?down?part?of?

oil?cylinder?pull?pressure?plate?run?upwards,?the?up?part?oil?of?the?oil?cylinder?flow?back?to?tank?via?reversing?

valve.

Above?of?the?oil?cylinder?arranges?the?middle?device,?can?decrease?the?pressure?and?run?to?the?up?limit.

Specifications:

1.?Nominal?pressure:?80KN

2.?Working?stroke:?700mm

3.?Pressure?plate?downwards?running?speed:?≥35mm/s

4.?Pressure?plate?upwards?running?speed:?≥50mm/s

5.?Machine?packing?size?(L*W*H):?3700x2450×1250mm

6.?Packing?size?of?gabion?mesh:?2000×1000×1000mm

7.?Hydraulic?system?working?pressure:?5MPa

8.?Hydraulic?oil:?32#?hydraulic?oil?120KG

9.?Machine?power:?5.5Kw

Competitive?Advantage:

1.?All?the?parts?of?netting?sheet?cutting?machine?are?processed?by?our?own?factory,?no?parts?were?send?to?

outside?to?process,?so?the?quality?can?be?ensured.

2.?We?can?provide?12months?guarantee?for?all?the?equipments,?and?if?customer?need,?we?will?arrange?our?

technician?to?help?install?the?machines?in?your?country,?and?also?could?supply?all?the?spare?parts?with?cost?

price?if?customer?need.
