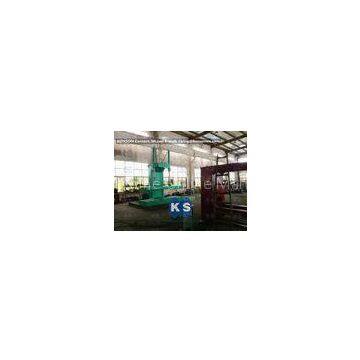

Automatic Hydraulic Gabion Mesh Packing Press Machine For 3mx1mx1m Gabion Box

Automatic Hydraulic Gabion Mesh Packing Press Machine For 3mx1mx1m Gabion Box

When?the?packing?machine?working,?oil?pump?unit?provide?the?pressure?oil?via?safety?valve ?limit?the?pressure?and?enter?manual?reversing?valve, ?when?manual?reversing?valve?work?on?the?left, ? pressure?oil?enter?on?the?oil?cylinder?via?piston, ?piston?rod?pull?pressure?plate?run?downwards, ? the?down?oil?of?the?oil?cylinder?stream?back?to?tank?via?reversing?valve.

Sell to?Jiangyin Jinlida Light Industry Machinery Co.,Ltd.?

Working Width:3000x1000mm

Working Width:2000x1000mm

2. Products of Packing Machine:

1.Machine?size:?3700x2450×1250mm

2.Nominal?pressure:?80KN

3.Working?stroke:?700mm

4.Pressure?plate?downwards?running?speed:?≥35mm/s

5.Pressure?plate?upwards?running?speed:?≥50mm/s

6.Packing?gabion?size:?2000×1000×1000mm

7.Hydraulic?oil:?32#?hydraulic?oil

8.Working?pressure:0.4-0.6MPA

9.Machine?weight:1500KW

10.Power:?5.5Kw

Standard Machines:

1. Main netting machine
2. Winding machine
3. Wire tension device
4. Spiral coiling machine

Optional Machines:
5. Hydraulic packing machine
6. Wire spools
7. Work platform
8. Netting straightening machine
9. Netting cutting machine
10. Wrapped edge machine
11. Selvedge cutting machine
12. PVC coating line

KONSON?exported?machines?to?foreign countries and provide after-sale service.?We could also help customers to repair machines from other suppliers.

The production line contains four standard machines and nine optional machines:

Main netting machine,?Winding machine,?Wire tension device?and?Spiral coiling machine,?We can also manufacture?straightening machine,?cutting machine and?packing machine etc. to improve productivity.

?Why?always?choose?KONSON??

+ The earliest manufacturer of Gabion machine in China.

+ We have experience of export business for more than 15 years.

+ The finished products can meet international standard ASTM , BS, EN and pass ISO,SGS quality certificate system.

+ Complete material testing system and QC system.

+ Experienced staffs, the fastest delivery time.

+ Best service (Any enquiry will be replied within 24 hours). Thanks for your reading!
