Home > Products > Welded Pipe Mill > Straight Seam Welded Pipe Mill , ZG45 Tube Mill Line for Round / Square Pipes and Rectangle Pipes

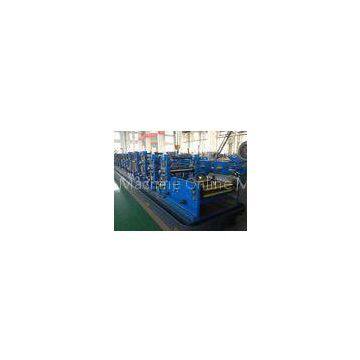

Straight Seam Welded Pipe Mill , ZG45 Tube Mill Line for Round / Square Pipes and Rectangle Pipes
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Roll Forming Machine for steel profiles, C / Z purlin, roof / wall panel
-
High Speed Welded Pipe Mill / Welded Tube Making Line with 12mm Thickness Speed Testing Wheel
-
ZY60 Precision Longitudinal Welded Pipe Mill Line with 25-76mm Outside Diameter
-
ZY45 0.7-2.0mm Thickness High Frequency Longitudinal Welded Pipe Mill Line With Sizing Machine
-
High Frequency Welded Pipe Mill , Steel Pipe Rolling Machine for Carbon Steel Welded Pipe
-
Precision high frequency Longitudinal welded pipe mill line for custom made steel pipes
Product Details
| Brand Name | HS | Place of Origin | China | |
| Model Number | custom made |
Product Description
Certification:ISO9001, CE
Straight Seam Welded Pipe Mill , ZG45 Tube Mill Line for Round / Square Pipes and Rectangle Pipes
Straight seam welded pipe mill for round pipes, square pipes and rectangle pipes
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
Main Technical Parameters of the machine
|
Description |
ZG45 |
ZG60 |
|
Diameter of welded tubes |
Φ13-50mm |
Φ16-63mm |
|
Wall thickness of welded tubes |
0.8-2.0mm |
1.6-3.0mm |
|
Speed of tube welding |
20-75M/min |
20-65M/min |
|
Power of major motor |
75KW |
90KW |
|
Power of high frequency welder |
100KW |
200KW |
|
Description |
ZG50 tube mill line |
|
Diameter of welded tubes |
Φ15-63.5mm |
|
Wall thickness of welded tubes |
0.8-2.5mm |
|
Speed of tube welding |
40-80M/min |
|
Power of major motor |
110KW |
|
Power of high frequency welder |
150KW |
|
Description |
ZG60 tube mill line |
|
Diameter of welded tubes |
Φ16-63.5mm |
|
Wall thickness of welded tubes |
1.0-3.0mm |
|
Speed of tube welding |
40-80M/min |
|
Power of major motor |
132KW |
|
Power of high frequency welder |
200KW |
?Raw material (steel coil) → decoiling→ shearing and welding→ material accumulating → non-power leveling →forming milling →high frequency welding →removing burrs outside of weld seam →cooling →sizing →rough straightening → fixed length cutting →finishing pipe
