Home > Products > Hydraulic Cutting Machine > shoe automatic cutting machine

shoe automatic cutting machine

FOB Price

USD $100 - $8,000 / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	SUMON
Model Number	HSD/Q500

Product Description

Specifications

HSD/Q500 automatic stepping feeding movable head type cutting machine,High Quality cutting machine,cutting machine HSD/Q500

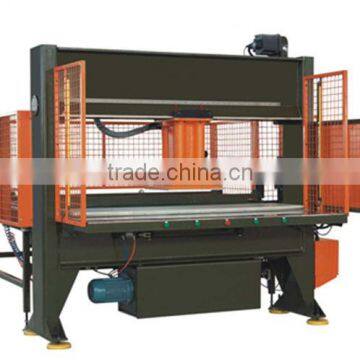

HSD/Q500 automatic stepping feeding movable head type cutting machine

Specifications

Products of special specifications can be customized.Optional: cutting board micro-movement device.

USE ANDCHARACTERISTICS:

1. The machine is applicable to continuous cutting operation of nonmetal rolled materials of same specifications and large batches by die cutter. For example: used in such industries as football, volleyball, tennis and medicine etc.

2. The servo motor is adopted to control the horizontal movement of cutting head, and the multilayer materials are clamped by the cylinder for stepping feeding. The machine can automatically complete the cutting of materials and the displacement distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.

3. The machine has various working modes such as inching, manual and automatic etc. modes. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.

4. The machine has cutting modes of stagger, stagger blade reducing and die cutter rotation etc., which can save 10%~15% of raw materials.

5. As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine, so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.

6. With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.

7. Products of special specifications can be customized.Optional: cutting board micro-movement device.

TECHNICAL SPECIFICATION

Model	HSD/Q250	HSD/Q250A	HSD/Q250B	HSD/Q500	HSD/Q500A	HSD/Q500B
Maximum cutting force	250KN	250KN	250KN	500KN	500KN	500KN
Working table(mm)	1800*500	2000*500	2200*500	1800*550	2000*550	2200*550
Size of travel head(mm)	500*500	500*500	500*500	550*550	550*550	550*550
Adjustable stroke(mm)	5-150	5-150	5-150	5-150	5-150	5-150
Motor power	2.2kw	2.2kw	2.2kw	4.0kw	4.0kw	4.0kw
Machine’s dimensions(mm)	22006202000	24006202000	26006202000	22006202000	24006202000	28006202000
G.W	2300kg	2800kg	3500kg	3500kg	4200kg	5000kg

Our Hot Sale Cutting Machine: (Please click the picture to link the product.)
