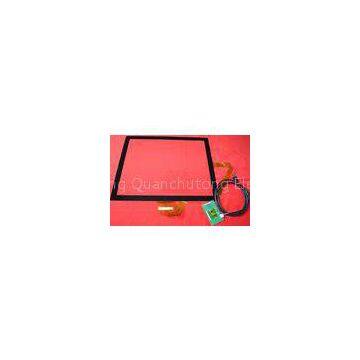

19 Inch interactive touch screen display , ATM / computer resistive or capacitive touch screen
USD $ 30 - $ 60
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
small finger 5 points capacitive Car Navigation Touch Screen with 1.8mm ITO Glass
-
Durable Waterproof industrial GPS 7\" 4 wire resistive touch panel 1.5% Linearity
-
8\" 4 Wire Resistive Glass Kiosk Touch Screen Panel for advertise machine
-
five point Projected Capacitive Exhibition Kiosk Touch Screen Compatible Gloves
-
Industrial Computer ITO Glass 5\" Matrix Touch Screen Sunlight Readable Touchscreens
-
Customized small Resistive Matrix Touch Screen Panel 5\" with 0.7mm / 1.1mm Thickness
Product Details
| Brand Name | HY | Place of Origin | China | |
| Model Number | HY19104 |
Product Description
19 Inch Kiosk Touch Screen Panel for Supermarket Square
Quick Detail:
| Name | 19 Inch High Sensitive Kiosk Glass Touch Screen Panel | Application | Kiosk , advertise machine , all in one personal computer? | ||
| Item NO. | HY19104 | Linearity | ≤1.5% | Transparence | 83% |
| Size | 19\" | Life | 1million hit at a point | Chattering time | ≤15ms |
| Structure | ITO Glass+ITO Film , Glass+Glass , Film+Film | ||||
| Thickness | 0.7mm,1.1mm , 1.8mm glass+0.188mm film |
Descriptions
Kiosk Touch Screen Panel ?may be resistive touch screen or capacitive touch screen, it depends on where the kiosk be used.
Applications:
1. Financial - ATM & Bill Pay Kiosks
2. Home appliances
3. Personal computer and office
4. Access control terminals
5.?Portable sport devices
6.?Light industrial
Advantages:
--To be activated with any device
--High accuracy and sensitivity
--High durability and reliability
--Contaminant proof and liquid resistance.
--Finger , gloved hand and stylus activation
--Low cost solution , Low power consumption
Specifications
Type :4 Wire Resistive Kiosk Touch Screen Panel
Main Specifications:
| Items | Spec | Units |
| screen size | Multiple,customize | inch |
| outside size | Multiple,customize | mm |
| View area | Multiple,customize | mm |
| Active area | Multiple,customize | mm |
| Conductive Glass | ITO 0.7,1.1,1.8 | mm |
| Conductive film | 188 | μm |
| Connector | flexible printed circuit | customize ? |
|
Input method |
Pen or finger |
| Structure | Conductive Film—ITO film |
| Key sheet or glue | Conductive Glass —ITO Glass,1.8mm |
| Insulation Distance | 3mm*3mm |
| Connector | FPC — flexible printed circuit |
Electrical Performance
| Loop resistance | 50~300Ω |
| Linearity | ≤±1.5% |
| Insulation Resistance | ≥10MΩ,@25V(DC) |
| Chattering time | ≤15ms |
| Response time | ≤30ms(from the touch moment to response) |
Mechanical Behavior:
| Input method | Pen or finger |
| Operation force | OD 2mm pen within 60g~150g pressure |
| Surface hardness | 3H |
| Transparency | 80±3% @550nm wave length |
Other information
| resistive writing life | 1000,000times |
| capacitive writing life | 35,000,000times |
| Maximum operation voltage | 5V(DC),1mA |
| Operation Temp | -10~60°C |
| Storage Temp | -20~70°C |
Q&A
Q: What is your MOQ?
A: The MOQ is 100pcs , we will send samples before the order.
Q: How long time for 5000pcs ?
A: 4-7 Days is okay with laser Logo.
Q:How about shipping
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good , i will suggestion to you. 3-4 days can arrive UK . We usually send the items via DHL , if in large quantity , we will send by sea.
Q: How long is your quality guarantee period
A: 1 year
