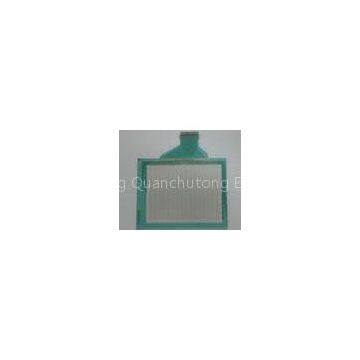

high Brightness open frame 7 Resistive Matrix Touch Screen ITO Glass + ITO Film
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
7\" Waterproof FPC Touch tone resistive touch screen panel Compatible Gloves
-
Interactive moisture proof 10.1 inch 8 Wire Resistive Touch Screen for Home appliances
-
custom transparent 10.1 Inch 8 Wire Resistive Touch Screen with Film + Film
-
moisture proof Copier / Printer Touchscreen interactive touch screen display
-
Copier / ATM Glass + Glass 8.5 inch 4 wire resistive touchscreen module 1.5% Linearity
-
open frame 5.7 inch four wire IR405 Printer Touchscreen Panel 50-300
Product Details
| Brand Name | HY | Place of Origin | China | |
| Model Number | 07405 |
Product Description
Multi-wire Resistive Type Matrix Touch Screen Panel for Factory Machine
Quick Detail:
| Name | Multi-wire Resistive Type Matrix Touch Screen Panel for Factory Machine | Application | Industrial Machine Control panel | ||
| Item NO. | HY07403 | Linearity | ≤1.5% | Transparence | 83% |
| Size | 7” | Life | 1 million hit at a point | Chattering time | ≤15ms |
| Structure | ITO Glass+ITO Film,Glass+Glass,Film+Film | ||||
| Thickness | 0.7mm,1.1mm,1.8mm glass+0.188mm film |
Descriptions
Matrix resistive touch screen panel is belong to resistive touch screen , however it is quite different from the 4 wires resistive touch screen , this kind of the touch screen include the Touch-tone touch screen , fixed key touch screen,switch mode touch screen also named as digital touch screen . About the structure , it is same as the 4 wires resistive touch screen , being made up of high resistive ITO film and ITO glass/film that is separated by small spacer dots , it has the characteristics of thin , light , low power consumption , reliable , dust-proof , moisture proof and oil proof . It’s a reliable and affordable technology that is widely used by individuals and in less demanding workplace applications . It is pressure sensitive so it responds to any input device , including finger , gloved hand , or pen stylus .
Advantages:
1. ?Consistently accurate , quick response
2. ?Pressure sensitive , works with any stylus , finger , gloved hand and stylus activation
3.??Affordable touch screen technology
4 .?Not affected by dirt , dust , water , or light
5. Low cost , Little power consumption
6. Available to customize 1.5”-24”models
Applications:
1. Auto Industry , Factory Automation , Industrial Control
2.?Personal computer and office
3. Portable sport devices
4.?Access control terminals
5.?Switch mode panel
6.?Home appliances?
Specifications
Type :Matrix resistive touch screen panel
| Input method | Pen or finger |
| Structure | Conductive Film—ITO film |
| Key sheet or glue | Conductive Glass —ITO Glass,1.8mm |
| Insulation Distance | 3mm*3mm |
| Connector | FPC — flexible printed circuit |
Electrical Performance
| Loop resistance | 50~300Ω |
| Linearity | ≤±1.5% |
| Insulation Resistance | ≥10MΩ,@25V(DC) |
| Chattering time | ≤15ms |
| Response time | ≤30ms(from the touch moment to response) |
Main Specifications:
| Items | Spec | Units |
| screen size | Multiple,customize | inch |
| outside size | Multiple,customize | mm |
| View area | Multiple,customize | mm |
| Active area | Multiple,customize | mm |
| Conductive Glass | ITO 0.7,1.1,1.8 | mm |
| Conductive film | 188 | μm |
| Connector | PET | PET |
Mechanical Behavior:
| Input method | Pen or finger |
| Operation force | OD 2mm pen within 60g~150g pressure |
| Surface hardness | 3H |
| Transparency | 80±3% @550nm wave length |
Other information
| resistive writing life | 1000,000times |
| capacitive writing life | 35,000,000times |
| Maximum operation voltage | 5V(DC),1mA |
| Operation Temp | -10~60°C |
| Storage Temp | -20~70°C |
Q&A
Q: What is your MOQ?
A: The MOQ is 100pcs, we will send samples before the order.
Q: How long time for 5000pcs ?
A: 4-7 Days is okay with laser Logo.
Q:How about shipping
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK. We usually send the items via DHL, if in large quantity, we will send by sea.
Q: How long is your quality guarantee period
A: 1 year
