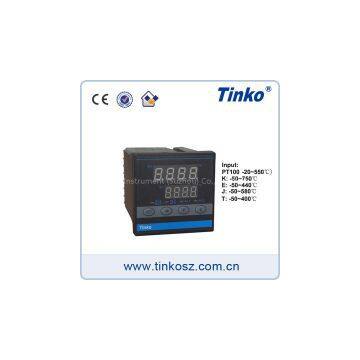

Tinko 72*72mm Digital Intelligent Temperature Controller With Auto Tuning Ambient Temperature Control

1. Application
   Wildly used in the electrical heating products temperature controlling. Such as Plastic Machinery, Electric Stove, Oven and so on.

2. Technical parameters
1)      Power supply: AC85~265V,50/60Hz
2)      Accuracy: plus-minus 0.5%FS
3)      Resolution: 1 centigrade
4)      Operating condition: -10~60centigrade, 25%~85% rH
5)      Input type: K\\\\E \\\\J/RTD:Pt100\\\\Cu50\\\\Cu100 etc.
6)      Control method: Auto-tuning PID control/On-Off control
7)      Output type: Relay, Voltage pulse, Triac triggeretc.
8)      Alarm output

3.Ordering code
CTL- (1) F (2) - (3) -(4) - (5)- CC
(1) Front Panel Size(W×H, mm)
  4:48*48    5:48*96        6:96*48    7:72*72      9:96*96
(2)Input Signal & Range
   K02:  K (-50~750 centigrade)          E02:  E (-50~440 centigrade)
   J02:  J(-50~580 centigrade)                 T02:  T (-50~400 centigrade)
   P03:  Pt100 (-20~550 centigrade)
(3)Control Output
    M:  Relay contact (AC250V, 3A)     V:  SSR Drive (Voltage pulse)
    G:  Triac trigger (zero-cross)             8:  D.C.4-20mA
(4) Alarm 1 ~ Alarm 3
    N: None            M:  Relay contact (AC250V, 3A)
(5) Transmission Output
    N: None          8:  D.C.4-20mA

4. Feature
1)  Fuzzy PID algorithm with fast and stable control.
2)  Adopt industrial grade components, mature design and strong anti-jamming capability.
3) Not affect temperature measurement, while setting temperature. Improve its safety.

5. Alarm function: (Controller will alarm, when the situation below occurred)
1)  Open circuit of thermocouple and resistance
2)  Inverse connection of thermocouple
3) Short circuit of resistance
