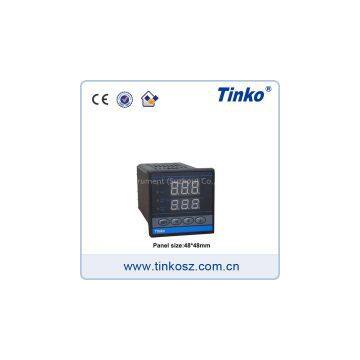

Tinko CTL-4 Intelligent Temperature Controller Panel Size 48*48mm

1. Application
   Wildly used in the electrical heating products temperature controlling. Such as Plastic Machinery, Electric Stove, Oven and so on.

2. Technical parameters
1)      Power supply: AC85~265V,50/60Hz
2)      Accuracy: plus-minus 0.5%FS
3)      Resolution: 1 centigrade
4)      Operating condition: -10~60centigrade, 25%~85% rH
5)      Input type: K\\\\E \\\\J/RTD:Pt100\\\\Cu50\\\\Cu100 etc.
6)      Control method: Auto-tuning PID control/On-Off control
7)      Output type: Relay, Voltage pulse, Triac triggeretc.
8)      Alarm output

3.Ordering code
CTL- (1) F (2) - (3) -(4) - (5)- CC
(1) Front Panel Size(W×H, mm)
  4:48*48    5:48*96        6:96*48    7:72*72      9:96*96
(2)Input Signal & Range
   K02:  K (-50~750 centigrade)          E02:  E (-50~440 centigrade)
   J02:  J(-50~580 centigrade)                 T02:  T (-50~400 centigrade)
   P03:  Pt100 (-20~550 centigrade)
(3)Control Output
    M:  Relay contact (AC250V, 3A)     V:  SSR Drive (Voltage pulse)
    G:  Triac trigger (zero-cross)             8:  D.C.4-20mA
(4) Alarm 1 ~ Alarm 3
    N: None            M:  Relay contact (AC250V, 3A)
(5) Transmission Output
    N: None          8:  D.C.4-20mA

4. Feature
1)  Fuzzy PID algorithm with fast and stable control.
2)  Adopt industrial grade components, mature design and strong anti-jamming capability.
3) Not affect temperature measurement, while setting temperature. Improve its safety.

5. Alarm function: (Controller will alarm, when the situation below occurred)
1)  Open circuit of thermocouple and resistance
2)  Inverse connection of thermocouple
3) Short circuit of resistance
