Precision Injection Multi Cavity Mould HOT Runner And 2 plate

Quick Detail:

1. The part name: Medical instruments(plastic injection mold)

2. Plastic material: PP

3. Cavity material: H13 HRC48-52

4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.

5. Gate type: SUB-gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires.

6. Mold base standard: LKM Local standard, DME or HASCO, Customize according to customers\' requirements.

7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.

Description:

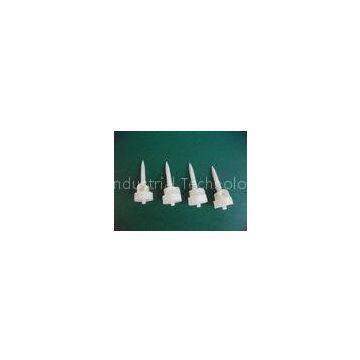

The part name: Medical instruments

Mold type: Plastic Injection Mould with HOT runner system

Locating ring Dimension: Ф100

Part Material: PP

Ejection type: ejection pins.

KO Pattern: 200*200

Sprue Radius: SR 19

Mold construction description: HOT runner system with SUB gate, 2 plates, 8sliders, and many shut off area. Many size tolerances are no more than 0.02mm,twice ejection with ejection pin and stripper plate, there is a very small long center pin in the product,which is very easy to be deform when molding,otherwise, this mold have 24 cav,we must ensure that the size of all mold component are consistent in mass production.

This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
