Home > Products > AC Induction Motor > PSC Class B Insulation 50Hz / 60Hz AC Asynchronous Motor For Fan Coil / Blower

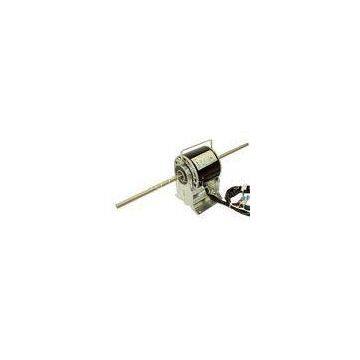

PSC Class B Insulation 50Hz / 60Hz AC Asynchronous Motor For Fan Coil / Blower
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Phase AC Asynchronous Motor 50Hz 120w Blower Motors
-
AC Induction Motor For Fan Coil Unit PSC 700RPM to 1400RPM Motors
-
Single Shaft, Single Phase AC Induction Motor For Fan Coil Unit , 220V 50Hz , 8W - 25W
-
Single Shaft, Single Phase AC Induction Motor For Air Conditioner Fan , PSC
-
PSC Single Phase AC Condenser Fan Motor For Condenser Fan , 3/4HP 1075RPM
-
Class B Direct Drive Blower Motor , 1075 RPM 1/4HP 115 Volt Single Phase
Product Details
| Brand Name | SANXIANG | Place of Origin | China | |
| Model Number | YSK-XX-4P / YSK-XX-6P |
Product Description
Certification:ISO 9001, CCC, CE
PSC Class B Insulation 50Hz / 60Hz AC Asynchronous Motor For? Fan Coil / Blower
Quick Detail:
FAN COIL UNIT MOTOR , SINGLE PHASE , PSC
Description:
YSK100 series motors are special designed for fan coil unit of centrial air conditioner
110V-230V, 50/60Hz, single phase Output power from 6 watts to 60 watts, rated speed from 700RPM to 1400RPM, class?B insulation Auto thermal protection. IP20 to IP44 protection level as per customer requirement Single shaft or double shafts, single / three or multipe speeds design Rolled steel with powder coated motor frame or alumimum extrusion with anodized motor frame. Nickle plated shaft or phosphating treated shaft Bracket mounting , motor central height from 90mm to 115mm It can be optimized in accordance with different blower wheels and surface cooler to achieve best performance and cost saving.?Applications:
FAN COIL UNIT FOR CENTRAL AIR CONDITIONERS OR SIMILAR APPLICATIONS
Specifications:
|
Model number |
OUTPUT POWER |
INPUT POWER |
RATED SPEED |
|
YSK-16W-6P |
16 |
52 |
709 |
|
YSK-20W-4P |
20 |
59 |
872 |
|
YSK-20W-6P |
20 |
62 |
750 |
|
YSK-25W-4P |
25 |
66 |
1044 |
|
YSK-35W-4P |
35 |
84 |
1012 |
|
YSK-40W-4P |
40 |
96 |
1052 |
|
YSK-45W-4P |
45 |
100 |
1092 |
|
YSK-50W-4P |
50 |
108 |
1150 |
|
YSK-60W-4P |
60 |
125 |
1180 |
Competitive Advantage:
SPECIAL DESINGED FOR FAN COIL UNIT, HIGH EFFICIENCY , LOW TEMPERATURE RISE , LOW NOISY AND VIBRATION
