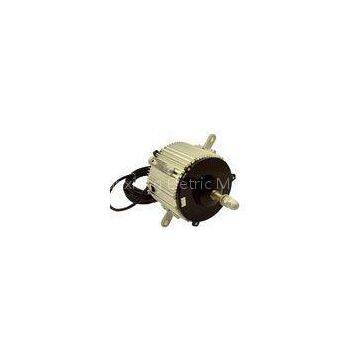

2200watt 6 Poles Axial Fan Motor , 600RPM / 1650RPM , Three Phase
- T/T L/C D/P D/A
- 7 days
You May Like
-
Three Phase Air-cooled Electric Induction Motors For HVAC , IP56 8 Poles
-
Three Phase Axial Fan Motor Of Class B Or F Insulation , 600RPM To 1650RPM 1100w
-
Single Phase Axial Fan Motor Asynchronous Motors, 650RPM / 1450 RPM
-
60Hz / 50Hz Class B Insulation PSC Blower Motor For Ceiling Air Conditioner , ISO / CCC / CE
-
1350RPM / 100w Axial Fan Motor Single Phase Motors For Air Conditioner , 115V 6 Poles
-
IP44 Three Phase Axial Fan Motor Of Class F Insulation , 1100w / 1650 RPM
Product Details
| Brand Name | SANXIANG | Place of Origin | China | |
| Model Number | YLS155-XX-4 / YLS155-XX-6 / YLS155-XX-8 |
Product Description
Certification:ISO 9001, CCC, CE
2200watt 6 Poles Axial Fan Motor , 600RPM / 1650RPM , Three Phase
Quick Detail:
YLS 155 SERIES, AXIAL FLOW FAN MOTOR , THREE PHASE, ??????
Description:
YLS 155 series motors are special designed for axial flow fan or similar applications.
Output power from 150 watts to 2200 watts Rated speed from 600RPM to 1650RPM, 4 poles, 6 poles or 8 poles Class B or F insulation Aluminum extrusion motor shell with stell mounting brackets , die-cast aluminum endshields Ball beariing design to avoid maintain in whole motor life Copper winding wire and cold rolled silicon steel design to achieve high efficiency with low temperature rise for long motor life, low noisy and less vibration IP44- IP56 protection level as per customer requirement Nickle plated shaft or phosphating treated shaft Motor performance and dimensions such as rated speed,shaft length are customizable according to customer requirementApplications:?????
AXIAL FLOW FAN MOTOR OR SIMILAR APPLICATIONS
Specifications:
|
Motor Type |
Vol / Fre |
Current(A) |
Rated Speed |
|
YLS-150W8P |
380V / 50Hz |
0.4 |
550 |
|
YLS-330W6P |
380V / 50Hz |
1 |
950 |
|
YLS-550W6P |
380V / 50Hz |
1.7 |
960 |
|
YLS-375W8P |
380V / 50Hz |
1.6 |
580 |
|
YLS-550W8P |
380V / 50Hz |
2.3 |
680 |
|
YLS-1100W8P |
380V / 50Hz |
3.9 |
720 |
|
YLS-1500W8P |
380V / 50Hz |
4.5 |
720 |
|
YLS-1300W8P |
380V / 50Hz |
4.1 |
720 |
|
YLS-1800W8P |
380V / 50Hz |
4.8 |
720 |
|
YLS-2200W8P |
380V / 50Hz |
5.3 |
720 |
|
YLS-2200W6P |
380V / 50Hz |
5.6 |
950 |
Competitive Advantage:
HIGH EFFICIENCY , LOW TEMPERATURE RISE, LOW VIBRATION
