HDPE Pipe Manufacturing Machine With Single Screw Extruder 110mm ~ 250mm

Brand Name	POLYTECH		Place of Origin	China

Delivery Time:30 days after perpayment
Certification:ISO9001-2000；CE

?
?
?
HDPE Pipe Manufacturing Machine With Single Screw Extruder 110mm ~ 250mm
?
?
Quick Detail:
The HDPE plastic pipe production line is mechanotronics, with the advantages of:
1) highly automated;
2) easy to operate;
3) continuous production with stability and reliability
?
?
?
Description:

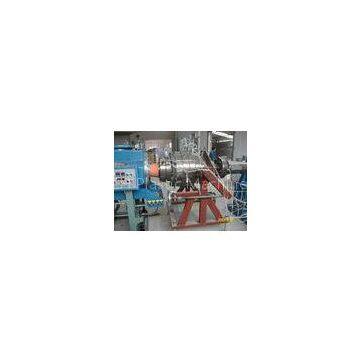

The HDPE plastic pipe production line mainly consists of control system,extruder,die,calibration system,haul-off unit,planet cutting device and stacking device. Each line has two extruders, the main one adopts strong convey bush and high-efficient screw, the smaller one is mainly used for extrude marking line.
?
?

Specifications:

Model	SJGZ-63	SJGZ-160	SJGZ-250	SJGZ-450	SJGZ-630
Pipe diameter	Φ20~Φ63	Φ50~Φ160	Φ110~Φ250	Φ160~Φ450	Φ315~Φ630
Extruder	SJ65/33 SJ25/25	SJ75/33 SJ25/25	SJ90/33 SJ30/25	SJ120/33 SJ30/25	SJ30/25 SJ120/33
output	100-120	150-250	280-300	350-700	350-800
Main dirve motor	55	55	130	180	180

?
?
Applications:
The pipe product of HDPE water supply and gas supply pipe extruder machine has proper rigidity,intensity,and good flexibility,good creep-resistance,environmental stress crack resistance and good melt ability, already been the best choice of ?the gas and water supply pipe in the city.
?
?
Advantage of the HDPE water supply and gas supply pipes:

Non-toxic: no heavy metal additives ,would not be covered with dirt or contaminated by bacteriumCorrosion Resistant: resist chemical matters and electron chemical corrosionLow Flow Resistance: smooth interior walls and low frictionEasy installation: light weight and handed friendlyLongevity: more than 50 years under proper useVarious Joint Availability: socket fusion joint, butt fusion joint, electro fusion joint and transition jointRecycled and Environment-friendly

?
?
Competitive Advantage:
The HDPE water supply pipe extruder machine has unique structure, it is highly automated, easy to operate,continuous production with stability and reliability.
?
?


?
