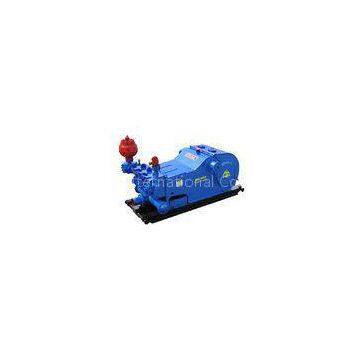

API Drilling Mud Pump Triplex Single Acting Piston Pump For Oil Field Drilling
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Horizontal Decanter Centrifuge for drilling mud centrifuge 1800-3200r/min
-
Type E Pneumatic Spider to handling drill pipe - 23/8 to 75/8 inch , petroleum equipment
-
custommised Oil drilling well head tool , center latch DDZ series elevator
-
Oil Drilling Equipment Model DD center latch elevator with square shoulder
-
essential Type C Manual Tong well head tools in oil drilling operation
-
CDZ drilling pipe elevator holding / hoisting drilling pipe with 18 degree taper
Product Details
| Brand Name | KOMAL | Place of Origin | China | |
| Model Number | F-1000 |
Product Description
Certification:API
API Drilling Mud Pump Triplex Single Acting Piston Pump For Oil Field Drilling
Quick Detail:
1, Model: F-1000,F-1300,F-1600,F-1600HL,F-2200HL,3NB-1600HL ETC.
2, Strokes Rating: 105-165r/min
3, Approx. Weight: 9770-43080Kgs
4, Pinion Shaft Dia.: 139.7-254
5, drilling pump
6, BOMOCO,HONGHUA ETC.
Description:
China Komal mainly supply series mud pumps such as 500,800,1000,1300 and 1600. The transmission system can use belt, chain, straight joint and cardan shaft drive, and can be customized according to customers\' needs. In addition, pump unit with different power styles can be custom-tailored, including vertical and horizontal electric transmission, diesel transmission,etc. Products will be assembled and load tested before shipped to oil field.
Applications:
Oil field drilling,petroleum equipment,
Specifications :
| Model | F-500 | F-800 | F-1000 | F-1300 |
| Max. Liner size x stroke | 170x191 (6-3/4 x 7.5 ) | 170x229 (6-3/4 x 9 ) | 170x254 (6—3/4x10) | 180x305 (7x12) |
| Strokes Rating r/min | 165 | 150 | 140 | 120 |
| Power Rating, kW ( HP ) | 373 ( 500) | 597 (800) | 746(1000) | 969(1300) |
| Gear Type | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 |
| Suction Inlet Flange | 8 | 10 | 12 | 12 |
| Discharge Outlet Flange | 4 | 5 | 5 | 5 |
| Pinion Shaft Dia. | 139.7 (5-1/2) | 177.8 (7) | 196.9 (7-3/4) | 215.9 (8-1/2) |
| Key, mm (in ) | 31.75x31.75 (1-1/4x1 -1/4) | 44.45x44.45 (1-3/4x1-3/4) | 50.8x50.8 (2x2) | 50.8 x 50.8 (2x2) |
| Valve Pots | Valve-Over-Valve.API #5 | Valve-Over-Valve.API #6 | Valve-Over-Valve, API #6 | Valve-Over-Valve, API #7 |
| Approx. Weight | 9770 (21540) | 14500 (31970) | 18790 (41420) | 24572 (54170) |
| ? | ? | ? | ? | ? |
| Model | F-1600/1600L | F-1600HL | F-2200 | F-2200HL |
| Type | Triplex single acting piston | Triplex single acting plunger piston | \"Trip/ex singlo acting piston | Triplox sirjg/o /acting plunger piston |
| Max. Liner Size x Stroke | 180x305(7x12) | 190x305 (7-1/2x12) | 230x356 (9x14) | 230x356 (9x14) |
| Strokes Rating r/min | 120 | 120 | 105 | 105 |
| Power Rating, kW (HP) | 1193(1600) | 1193(1600) | 1640(2200) | 1640 (2200) |
| Gear Type | 4.206:1 | 4.206:1 | 3.512:1 | 3.512:1 |
| Discharge Outlet Flange | 5\" Flange , 5000 Psi | 5\" Flange , 10000Psi | 5\" Flange, 5000 Psi | 5\" Flange , 10000 Psi |
| Pinion Shaft Dia. | 215.9 (8-1/2 ) | 215.9 (8-1/2) | 254 ( 10) | 254( 10 ) |
| Key, mm (in ) | 50.8 x 50.8 (2x2) | 50.8x50.8 (2x2) | 63.5x44.45 (2-1/2 x 1-3/4) | 63.5x44.45 (2-1/2x1-3/4) |
| Valve Pots | Valve-Over-Valve, API #7 Ltype, API #7 | Ltype, API #7 | Valve-Over-Valve API #8 | L type, API #8 |
| Approx. Weight | 24791 (54660)/ 25900kg (571001b) | 29400 (64820) | 38460 (84790) | 43080 (94980) |
Competitive advantages:
Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time
