Product Details
| Brand Name | MITECH | Place of Origin | China | |
| Model Number | HRMS-45 |
Product Description

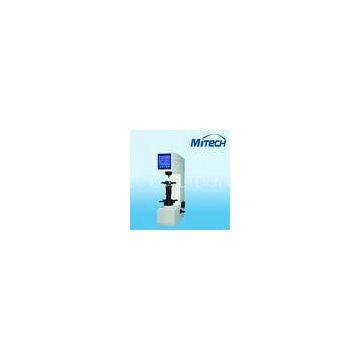

LCD Screen Display Manual Superficial Rockwell Hardness Tester Equipment HRMS-45
HRMS-45 Manual Superficial Rockwell Hardness Tester
Description:
HRMS-45 Digital Superficial Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure. It mainly functions are as follows: 1. Selection of Rockwell hardness scales, 2. Exchange hardness values among hardness scales, 3. Output the results of hardness measurement with printer, 4. RS-232 hyper terminal setting is with good reliability, excellent operation and easy watching.
Applications:
HRMS-45 Manual Superficial Rockwell Hardness Tester adopts mechanical and manual testing method, without electrical device. With simple appearance, it uses as popular type Rockwell Hardness testing instrument.
Specifications:
|
Rockwell Scales |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
Initial Testing Force |
3kgf (29.42N) |
|
All Testing Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) |
|
Indication of Hardness Value |
Dial |
|
Overall Dimension |
520×240×700mm(L×W×H) |
|
Net Weight |
80kg |
|
Max Height of Speciment |
Superficial Rockwell: 170mm |
|
Max depth of speciments |
165mm |
|
Power supply |
AC220V±5%,50~60Hz |
|
Carried Standard |
GB/T230(1.2) Chinese Standard?? GB/T4340(1.2) Chinese Standard |
|
Standard Accessories |
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and Vshaped Testing Table, HRC and HRB Hardness Blocks. |
