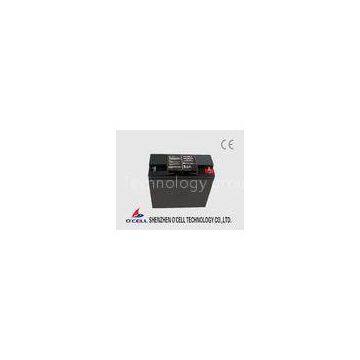

Custom Made 12V 20Ah Lifepo4 Lithium-ion Battery Pack For Electric Car, Golf Cart

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	o\'cell		Place of Origin	China
Model Number	IFM12-200E2

Delivery Time:25DAYS

Custom Made 12V 20Ah Lifepo4 Lithium-ion Battery Pack For Electric Car, Golf Cart

lifepo4 battery
1,Ultra-Long Lifecycle
2,Lighter Weight,Smaller Size
3,Higher Safety and Green
4,Maintenance Free
?

Features:

a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.

c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

d. Good performance at high temperature and high temperature resistance

e. Low self-discharge rate, less than 3% monthly.

f.? No memory effects and highly efficient charge.

g. Environment friendly: Clean and Green energy poses no pollution on our environment.

Model?	IFM12-200E2?
?Nominal?Capacity?(Ah)?	20Ah@0.5C5A?
?Nominal?Voltage(V)?	12.8V??
?Max.?Voltage(V)?	14.6V?
?Standard?Charge?Current(A)?	5A?
?Max.?Constant?Discharge?Current(A)?	25A?
?Max.?Pulse?Discharge?Current?	40A(10S)?
?Assembly?Method?	IFR18650EC-1.5Ah??4S14P?
?Battery?Housing?	12V17Ah?SLA?Case?
?Approx.?Weight(Kg)?	2.75
?Approx.?Dimension?(mm)?	L181W76H166?
?Max.?Resistance(AC??1KHz)??	≤40mΩ
?Cycle?Life(80%?DOD)?	＞800?cycles?
?Self-discharge?Ratio/month?	≤5%
Charge?Method	Standard?	5A×6.0H?
(CC/CV)?	Rapid?	10A×3.5H?
Temperature?	Charge?	0℃～45℃?
Discharge?	-10℃～55℃?
Storage?	-10℃～35℃?
