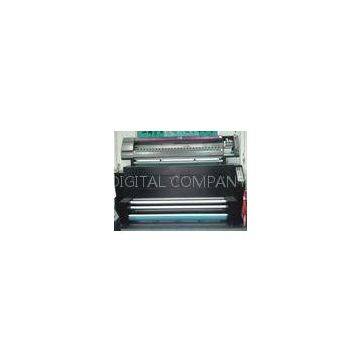

Two DX5 Printhead / Dye Sublimation Fabric Printer High Resolution 1440DPI

Type: Sublimtion inkjet printer

Brand Name: A-Starjet

Place of Origin: Changzhou

Automatic Grade: Automatic

Usage: digital fabric printer

Certification: CE

Voltage: AC 100-220V

Model: A-Starjet 5L+heater

Weight: 575 kgs

Color: CMYK

Keyword: Sublimation printer

After-sales Service: Yes

Item

A- Starjet 5L

Print head

2 DX5 print head

Number of nozzles

1440 nozzles per head

Color

4 Colors:Cyan,Magenta,Yellow,Black

Resolution

1440dpi(max)

Height of print head

2～5mm

Size of ink droplet

1.5～21pl

Printing width

126’’ (3200mm) max

Speed

Production mode:344sq.ft.(32 sq.m)per hour

Standard mode: 172sq.ft.(16 sq.m)per hour

Photo mode: 134sq.ft.(12.5 sq.m)per hour

Media width

130’’(3300mm)max

Media take up

optional

Media feeder

Yes

Media type

?Self-adhesive paper, PVC, mesh fabric, textile, PVC flex banner, adhesive vinyl, photo-paper, pp, backlit film, canvas, non woven fabric, chemical fabric, PU leather, micro fibre, leather,etc.

Ink type

eco-solvent pigment ink

eco- solvent dye ink

water-based dye ink

sublimation ink

Ink supply mode

Pipe based continues ink supply

Ink cartridge

8×350ml?

Rip software

iPrint3.0 RIP software(English version)

Supported image formal:TIFF, JPEG, and other common image formats

Postscript file process (optional)

Color mode: RGB or CMYK

Control software

A-Starjet control software(English version)

Operation system

MS Windows XP ﹠ Windows 7

Interface

USB2.0, RS-232

Power voltage

AC 220～240V 50～60Hz or AC 110～120V 50～60Hz

Power consumption

?300W (printing), 1KW (max)

Printing environment

Temperature:20～25℃,humidity:40-70% non-condensing

Printer dimension

W4300×D900×H1250mm(bracket included)

Packing dimension

W4350×D930×H730mm (bracket included)

Net weight

320kg? (bracket included)

Gross weight

550kg? (bracket included)
