Custom made Portable Commercial Building - Foldable, Modular

Custom made Portable Commercial Building - Foldable, Modular

? Description:

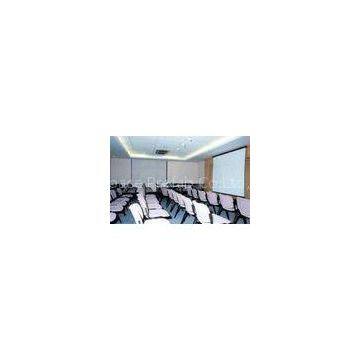

It includes a 300-square-meter’s lobby and 300 pcs of 6mx3m modular spaces. These modular spaces are joined.The partition wall between modules can be set up or moved as required in order to meet the different requirements, so that the project is very popular for the school.

It’s demountable.?7 units packed to one 40HQ during delivery, so it is suitable for international transportation.???

Specifications of Each Unit:

I.?Dimension(mm)＆Weight(kg)

???L=6055mm, W=2435mm, H=2790mm

II. Steel Frame: Galvanized Steel Frame with Marine Paint Finishes?

??? Load bearing - floor load: max. load capacity 2.0 kN/m2 (200 kg/m2)

??? Capacity?- wind load: 25 m/s (90 km/h)

III.?Wall : 50 - 100mm thick Sandwiched Panel?

IV.?Insulation : 50-100mm thick Rockwool or Neopor EPS

V. Door: 900 x 2100 mm Alum. Frame Metal Door or PVC Door

VI. Windows: 800 x 1000 mm Alum. Frame or PVC Window

Competitive Advantage:

Knock-down Panel wall saves transport and storage space

Top and bottom are pre-assembled in the factory in order to minimize the on-site work

With firm structure, the earthquakes and typhoons can be resisted

With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.

Modular design, be linked on unlimited extension

Easy to be repaired and maintained for high standardization.

Life time 30 years.
