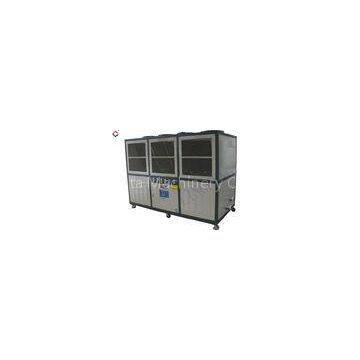

Electronic 30HP Air Cooled Chillers Industrial Water Chiller Units 113kw

?
Electronic 30HP Air Cooled Chillers Industrial Water Chiller Units 113kw

Quick Detail:
?
1. ?Move convenient
2. ?Environmental protection
3. ?The requirement of water quality is not high
4. ?Easy to handle
?
?
Description:
?
1.?Our?compressor?is?being?of?high-quality?built-in?safe?protection,?with?low?noise,?the?electricity?of?province?is?

durable.
2.?Cooling?capacity?range:?113.8kw~838kw?
3.?Normal?conditions:?Chilled?water?inlet?temperature?is?12?degree,?outlet?temperature?is?7?degrees.?Cooling?

water?inlet?temperature?is?30?degrees,?outlet?temperature?is?35?degrees.?But?the?lowest?temperature?can?be?-25?

degree.
4.?Standard?Input?power:?3P-380V-50Hz,?Allowable?fluctuate?voltage:?±?10%,?allowable?voltage?difference?in?

phase:?±?2%,Can?also?be?customized?according?to?customers’request
5.?The?quantity?of?compressor?can?be?one?or?two?,each?compressor?is?independent?refrigeration?system.?

Each?other?run?independently.when?the?one?is?working?,the?other?can?be?working?or?not.
6.?Use?PLC?microcomputer?control?from?Germany?Siemens?LCD?touch?screen,?both?English?and?Chinese?

human-machine?interface.?
7.?Wide?range?of?variable?chilled?water?temperature?to?meet?the?industrial?requirements?throughout?whole?year.?
8.Our?standard?refrigerant?is?R22,?but?you?can?choose?to?use?environmental?refrigerant?such?as?R407C?,?

R134A?or?R507.
?
high quality box type air cooled chiller for plastics industry
Air cooled chiller , most use hermitic compressor , such as : Sanyo , Copeland , Maneurop , Tecumseh , Bitzer .
The chiller can be divided into different temperature , low temperature type and high temperature type .
?
?
Competitive Advantage:
?
1. Needn’t cooling towers to provide cooling water , it is easy to install , suitable for the relative lack of water.
2. Low noise fan motor , excellent cooling condensation effect , steady throttle mechanism , excellent anti-rust treatment.
?
?
Our products with reliable security protection devices,include:
?
1. High and low voltage protection
2. Overheating protection exhaust
3. Motor overheating protection
4. Overcurrent protection
5. Antifreeze temperature protection
6. Water flow protection
7. Emergency stop switch
8. A temperature sensitive fusible plug , safety valve etc.
?
?
Applications:
?
1. Plastics industry :? accurate control of all kinds of plastic processing mould temperature, shorten the moulding cycle to ensure product quality and stability.
2. Electronics industry : stabilize the internal molecular structure of electronic components in the production line to improve the pass rate of electronic components. Used in ultrasonic cleaning industry effectively preventing volatilize costly cleaning agent , reducing injury to persons.
3. Electroplating industry : control plating temperature , increasing the density and smoothing plating , electroplating shorten cycle , increase productivity inprove product quality.
4. Machinery industry : control hydraulic system pressure oil temperature , stabilize oil pressure and temperature , prolong the life time of oil . Improve the efficiency of machinery lubrication , reduce wear and tear .
5. Construction industry supply cooling water to concrete make the molecular structure of concrete suitable for construction purposes . Effectively enhance the hardness and toughness of concrete.
6. Vacuum coating : control temperature of vacuum coating machine to ensure high quality plating.
7. Food industry : It is used to fast cooling the food after processing to adapt packaging requirements , also be used in fermented foods such as temperature control.
8. Pharmaceutical industry : In the pharmaceutical industry , it is mainly used to control the temperature of the fermentation drugs , pharmaceutical companies can make full use of chiller equipment , based on the play to their advantages to continue to strengthen technological innovation and enhanced chiller cost in order to better serve the pharmaceutical.

?
Specifications:
?
