Home > Products > Vending Machine Bill Acceptor > Vending Machine Bill Acceptor For Ruble And Hryvnia , Bill Validator RS-232

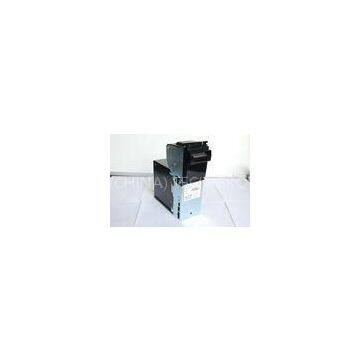

Vending Machine Bill Acceptor For Ruble And Hryvnia , Bill Validator RS-232
- T/T L/C D/P D/A
- 7 days
You May Like
-
Magnetic RFID Card Dispenser With Pre-Card Dispensing For Parking System
-
Contact / Contactless RFID Card Dispenser With RS-232C For Access Control System
-
Account Opening System RS-232C RFID / RF Card Dispenser , Magnetic Stripe Card Dispenser
-
Parking Magnetic Card Dispenser , IC / RFid Card Dispenser Machine ISO
-
3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser
-
3 In 1 Parking Kiosk Motorized Card Reader For RFID Card , IC Card Reader Writer
Product Details
| Brand Name | CRT | Place of Origin | China | |
| Model Number | C100-RUB-B01 C100-UAH-B01 |
Product Description
RS-232 Vending Machine Bill Acceptor For Ruble And Hryvnia , Bill Validator
Quick Detail:
Advanced auto-calibration；
Advanced high-performance optical, inductive and dielectric sensors for identification anti-counterfeits feature；
Any of four direction of insertion；
Anti-phishing design；
Self-diagnosis；
Lock and removable secure stacker；
Beltless transportation design；
RS232-upgradable；
Track record for stacker installation and remove；
Collective notes in stacker is always tracked with a record；
Support to detect altered notes
Description:
This is a compact and integrated bill acceptor with the functions of advanced auto-calibration, denomination detected, anti-counterfeit notes, anti-phishing, lockable / removable secure stacker and running status auto-tracking.
Applications:
Recharging machine
Tanker
Automatic vending machine
Gaming machine
Self-service payment machine
Specifications:
|
Operating voltage |
DC12V |
|
Operating current |
Static:300mA |
|
Communication interface |
RS-232 / CCNET? Serial port, CCNET protocol |
|
Denomination |
rub:5000,1000,500,100,50,10 Hryvnia:500,200,100,50,20,10,5,2,1 |
|
Complete transport cycle |
3s |
|
Notes-insertion |
Four directions (No folded or no wrinkle) |
|
Notes validation rate |
98% |
|
Sensors |
Advanced optical, inductive, dielectric, anti-phishing sensors |
|
M.T.B.F |
1,500,000 cycles |
|
Temperature |
Operation:-10℃ ~ 50℃,0 ~ 90% RH(Non condensing) |
|
Firmware updates |
Through the RS232 serial programming mode PC RS232 |
|
Weight |
Head:1750g |
|
Dimensions (W*H*D) |
104×131×273mm |
