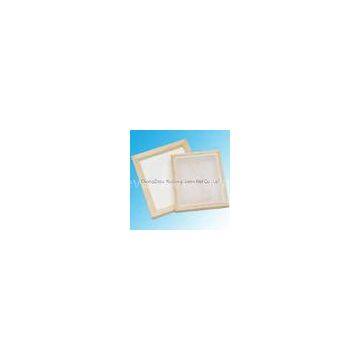

Monofilament Polyester Mesh 24T - 165T For Screen Printing , Water Resistant

Brand Name	Kai Long		Place of Origin	China
Model Number	24T- 165T

Delivery Time:According to the QTY
Certification:ISO9001, SGS, ROHS

Monofilament Polyester Mesh 24T - 165T For Screen Printing , Water Resistant

100% polyester
Width:115cm – 360cm
high tension and low elongation
water-resistant,electrostatic prevention,acid resistant,wear-resistant

Model Number:	24T- 165T
Material::	100% polyester
Weave type::	Plain
Elasticity::	Low
Colour::	White, yellow
Width::	115cm – 360cm

Specifications:

Mesh?Count	cm?mesh	77T
inch	195
Thread?Diameter?um	55?um??	64um
Mesh?Opening(um)	70?um	64?um
Open?Area(%)	28?%	24?%
Average?Thickness?um	90?um	115?um
Ink?Volume??cm3/㎡	25	28
Suggestion?Highest?Tension	27-32?N/cm	32-35?N/cm

1. All environmental friendly certification and approval

2. Color: white, yellow and other unlimited colors

3. Width can be cut upon your request

Description:

In the field of mesh fabrics for screen printing, nowadays the low-elongation polyester screen mesh has already replaced the traditional silk mesh and is dominating the screen printer in the world due to its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. It is said \"can be used to print on anything except air and water\", which is exactly what Kai Long is producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester.

Applications:

Our polyester screen printing mesh are used widely in textile printing, electronic printing, PCN, CDS, ceramics, glass, stained paper printing, labei plate, advertising, plastic. etc.

Competitive Advantage:

Improved fabric strength Faster tension stabilization High tension and low elongation. Precision bore, well-distributed, stabilization, superior stencil adhesion. Accurate printing precision control; holds finer detail with no compromise in stencil durability. Time-dependent stability and good cohesion with sensitive emulsion.

Mesh?count	weave	silk?diameter	Mesh?opening	Open?area	Thickness	Ink?Volume	Suggestion?Highest? Tension
cm	inch		um	um	%	um	cm3/m2	N/cm
15	38	PW	200	475	50	365	183	35-60
20	51	PW	200	300	35	355	124	35-60
24	61	PW	150	260	44	250	103	35-60
28	71	PW
