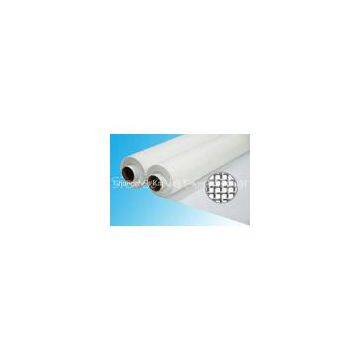

Fabric Plain Screen Print Mesh For Textile Printing , 100% Polyester

Brand Name	Kai Long		Place of Origin	China
Model Number	24T- 165T

Delivery Time:According to the QTY
Certification:ISO9001, SGS, ROHS

Fabric Plain Screen Print Mesh For Textile Printing , 100% Polyester

screen printing mesh
1. 100% polyester,high tension,low elongation
2. width:115cm-360cm
3. ISO9001,ROHS

Specifications:

1. All environmental friendly certification and approval

2. Color: white, yellow and other unlimited colors

3. Width can be cut upon your request

Description:

Product Details:

Certification:	ISO9001, SGS, ROHS
Model Number:	24T- 165T
Material::	100% polyester
Weave type::	Plain
Elasticity::	Low
Colour::	White, yellow
Width::	115cm – 360cm

In the field of mesh fabrics for screen printing, nowadays the low-elongation polyester screen mesh has already replaced the traditional silk mesh and is dominating the screen printer in the world due to its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. It is said \"can be used to print on anything except air and water\", which is exactly what Kai Long is producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester.

Applications:

Our polyester screen printing mesh are used widely in textile printing, electronic printing, PCN, CDS, ceramics, glass, stained paper printing, labei plate, advertising, plastic. etc.

Competitive Advantage:

Improved fabric strength Faster tension stabilization High tension and low elongation. Precision bore, well-distributed, stabilization, superior stencil adhesion. Accurate printing precision control; holds finer detail with no compromise in stencil durability. Time-dependent stability and good cohesion with sensitive emulsion.

Mesh?count	weave	silk?diameter	Mesh?opening	Open?area	Thickness	Ink?Volume	Suggestion?Highest? Tension
cm	inch		um	um	%	um	cm3/m2	N/cm
15	38	PW	200	475	50	365	183	35-60
20	51	PW	200	300	35	355	124	35-60
24	61	PW	150	260	44	250	103	35-60
28	71	PW	145	212	35	280	98	35-60
30	76	PW	120	213	41	200	82	35-60
32	80	PW	70	245	61	120	67	24-26
32	80	PW	100	200	43	160
