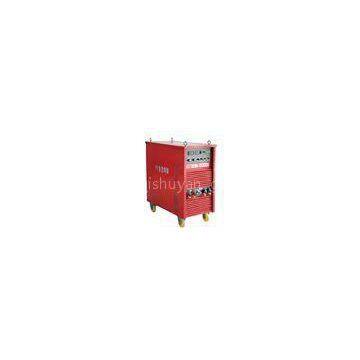

Small Drawn Arc Energy Capacitor Stud Welding Machine RSN-2000I For Car

Small Drawn Arc Energy Capacitor Stud Welding Machine RSN-2000I For Car

RSN-2000I inverted arc stud welding machine which could weld dia 10-22mm .It is featured with small size, light weight and easy to move. It is suitable for outdoor operation with advanced technology and it is energy-saved.?

It sells well in General Industry , also with decoration industry

Functions:

By welding Arc welding studs with material for copper plated, stainless steel and AL and Brass . Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Application:

Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Successful examples? :? Taizhou railway station , Direct Center of Baosteel Group shanghai No.5 Steel Co., ltd ., Beijing Olumpic Park National Meeting Center , Shanghai Television Station News Center , Canton Huilai Fire Power plant , Nanjing Olympic Center , Vehicle Testing Laboratory of China North Vehicle Research Institute .

Advantage:

1. Inverter Arc Stud welder which could weld shear stud from dia 10mm-25mm

2. Digital display of charging voltage and indication function of operating? modes provide easy and visual operation .

3. Good welding quality and wide applicability .Available to various kinds of materials , such as carbon or stainless steel, aluminum and copper .Also suits to shear connector .

4. Now has been widely used in shipbuilding, boiler, transformer, automobile, building and bridge engineering, etc

RSN-2000I inverter Drawn ?arc stud welding machine is featured with small size, light weight and easy to move. It is suitable for outdoor operation with advanced technology and it is energy-saved.??

Technical Parameter

Power Supply:Standard:3-phase?? 380V?? 50-60Hz

The input power under different temporary rate:210/10%? 176/20%? 143/40%(KVA/%)

Max work current:2000A

Welding time:0-5000ms

Stud Range:Φ10mm-Φ22mm

Protection:Ceramic Ferrule protections

Duty Cycle:3/Φ19?? 6/Φ16? 10/Φ13(Welding quantity per minute/stud diameter)

Weight:115KG

Outside dimension 790mm×415mm×900mm
