Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-201QGYWEL |
Product Description
Certification:GP ROHS SGS ISO9001
?

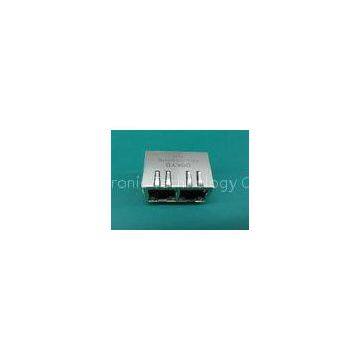

1000M Ethernet Cable 2 Port RJ45 Shielded Connector Jack Right Angle Tab-Down
?
?
1.Type:?2 port rj45
2.TAB direction: Down
3.Shieded:YES
4.LEDS:YES
5.EMI?finger:NO
6.Length: 21.3mm?
?
?
Descriptions:
?
＊?10/100/1000Base-Tx?RJ45?2?port?1X2 Right Angle with?LEDS?with side entry
＊?Double?port?1X2?Tab-Down?RJ45?with?internal?magnetics?????????????
＊?Internal?magnetics?are?100%?electrically?tested?for?HI-POT?and?functionality
＊?Suitable?for?CAT5&6?fast?Ethernet?Cable?or?better?UTP
＊?350uHminimum?OCL?with?8mA?bias?current
＊?High?performance?for?maximum?EMI?suppression
＊?Minimum?1500Vrms?isolation?per?IEEE?802.3?requirement
＊??ROHS-6?peak?wave?solder?temperature?rating?260℃
＊?Operating?temperarure?range?:0℃?to?+70℃
＊?Storage?temperature?range?:-40℃?to?+85℃
＊?Number?of?positions:10
＊?Number?of?contacts?loaded:8
＊?Shieded:YES
＊?Rohs?compliant
＊?Length:21.3mm
＊?LEDS:YES
＊?EMI?finger:NO
＊?LEFT?LED:Green,RIGHT?LED:Yellow
＊?Usage:KRJ-201QGYWENL
Applications:
?
10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, PC Board, internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
?
?
Electrical?Specifications:
?
|
Insertion? Loss dB?max |
Return?Loss?dB?min | Cross?Talk(dB?TYP) |
Common?Mode? |
Hipot (vrms) |
OCL (uH?MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | ? | ? | 1:1 |
Material?specifications:
?
＊?Plastic?core:Glass?fiber?filler?PBT?Black(UL94V-0)
＊?Contact:gold?pin0.35mm?thick?phos?bronze?plated?nickel?then?with?6u’gold
＊?PCB?Terminal:Phosphor?bronze?,Tail-Tin?over?Nickl
＊?Housing:Phenolic,?PBT?Black?(UL94V-0)
＊?Metal?shell:Copper?Alloy?,Tin?and?Nickel?plated
?
