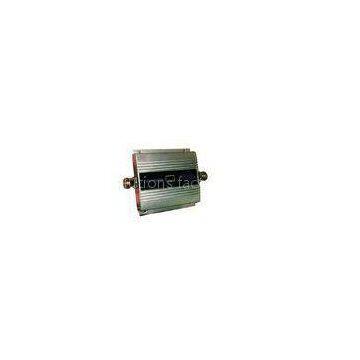

900MHz Indoor GSM Signal Boosters / GSM repeater With LCD display

Quick Detail:

Description:

Our cellular repeaters and boosters overcome the problem of dropped calls, limited range and slow data rates for cell phones and data cards by amplifying weak cellular signals, increasing your transmission and reception signal, and particularly in regions where there is a poor signal or very low signal coverage.

They provide benefits including improved reception and fewer dropped calls, lower radiation levels from your cell phone, and longer cell phone battery life.

Applications:

Cellular repeaters and boosters can be used at home, in the office, and in industrial applications in order to improve the reception for a single product or deployed to improve a whole local network region.

The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.

Scope:

1.? Small regions of signal or weak signal blind area, such as underground or semi-underground place of business, basements, underground parking, etc.;

2.? Complaints from small-scale hot-signal areas, such as conference rooms, a small supermarket, small shopping malls, the office and small public areas, etc.;

3.? Traffic and social influence of large areas, such as bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, etc.;

4.? Elevator, lift wells in particular, not in the lift cables laid;

5.? Home, office, luxury yachts, private cars, public security system and road safety management, etc

Specifications:

Workig Voltage: AC 100-220V(used AC/DC? 5Vdc)

Frequency Range:890-915MHZ(UP),935-960MHZ(DOWN)

Gain: 55dB Power: 18dbm

Pass Band Ripple : ≤3dB

Noise figure: ≤3dB

VSWR: ≤1.4(V.S.W.R)

Group Delay: 0.5μs

Size: (H x W x D):140*110*20 mm

Built-overarea :50 m2

Competitive Advantage:

GSM signal booster with LCD?display?function?to?display?signal?receives. Our products are with high gain and easy?installation?and?operation. Full-duplex,?single-port?design.LED?Light?Working?&?Signal?Condition?Indicators.??

Also you can custom configure your own cellular repeater system for your unique application by choosing specific AM booster, antennas and other wireless products or accessories.
