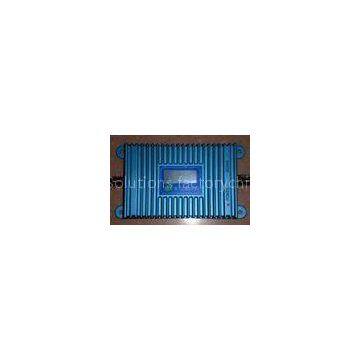

2100MHz 3G Mobile phone signal amplifier , wcdma cell phone repeater

Brand Name	AM		Place of Origin	China
Model Number	WCDMA-980N

Delivery Time:Within 2days for sample
Certification:CE
2100MHz 3G Mobile phone signal amplifier , wcdma cell phone repeater

Quick Detail:

Product name:WCDMA(3G) 2100MHz Mobile Phone Signal Repeater Booster with LCD display, Cell Phone Amplifier with LCD display, Luxury Boat Repeaters, AC 100 - 220V Home Cell Phone Signal Amplifier, Boosters, WCDMA(3G) 2100MHz Booster Frequency Range: 1930MHz -1990MHz (UP), 2110MHz～2180MHz (DOWN) Gain: 65dB ?Power: 20dbm Pass Band Ripple : ≤3dB Noise figure: ≤3dB VSWR: ≤1.5(V.S.W.R) Group Delay: 1μs

Description:

Our cellular repeaters and boosters overcome the problem of dropped calls, limited range and slow data rates for cell phones and data cards by amplifying weak cellular signals, increasing your transmission and reception signal, and particularly in regions where there is a poor signal or very low signal coverage.

They provide benefits including improved reception and fewer dropped calls, lower radiation levels from your cell phone, and longer cell phone battery life.

Applications:

Cellular repeaters and boosters can be used at home, in the office, and in industrial applications in order to improve the reception for a single product or deployed to improve a whole local network region.

Scope:

1. Small regions of signal or weak signal blind area, such as underground or semi-underground place of business, basements, underground parking, etc.;

2. Complaints from small-scale hot-signal areas, such as conference rooms, a small supermarket, small shopping malls, the office and small public areas, etc.;

3. Traffic and social influence of large areas, such as bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, etc.;

4. Elevator, lift wells in particular, not in the lift cables laid;

5. Home, office, luxury yachts, private cars, public security system and road safety management, etc

Specifications:

Working Voltage: AC 100-220V(used AC/DC?12Vdc)

Frequency Range: 1930MHz -1990MHz (UP), 2110MHz～2180MHz (DOWN)

Gain: 65dB ?Power: 20dbm

Pass Band Ripple : ≤3dB

Noise figure: ≤3dB

VSWR: ≤1.5(V.S.W.R)

Group Delay: 1μs

Size: (H x W x D):190*110*25 mm

Built-overarea : 2000 m2

Competitive Advantage:

1. Mini design,beautiful looking and practical

2. Receiving and sending separation,easy installation and operation, Full-dulpex design,low consumption,environmental protection

3. AGC,ALC intergration design,device stability total improvement

4. MCU singlechip control,monitoring device on running completely.

WCDMA signal booster with LCD?display?function?to?display?signal?receives. Our products are with high gain and easy?installation?and?operation. Full-duplex,?single-port?design. LED?Light?Working?&?Signal?Condition?Indicators.??

Also you can custom configure your own cellular repeater system for your unique application by choosing specific AM booster, antennas and other wireless products or accessories.
