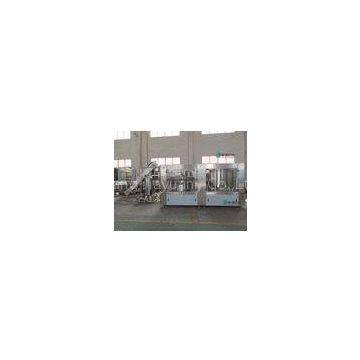

Mineral Water Filling Machinery 12.08Kw 20000BPH For PET Bottle

Brand Name	Jiayuan		Place of Origin	China
Model Number	RCGF40-40-12

Delivery Time:30 days
Certification:CE,SGS

Mineral Water Filling Machinery 12.08Kw 20000BPH For PET Bottle

Quick Detail:

Model: RCGF40-40-12 Capacity: 18000-20000BPH@0.5L bottle Seller: Jiayuan Full automatic, No bottle no filling, No cap machine stop. Customizable Designed applicable bottle: 0.2L-2L round PET bottle Designed applicable cap: plastic screw cap. Easy operate for changing different bottle volume. Application: Juice, energy drink, tea beverage etc. hot filling. 1 Year warranty CE & SGS Certificate Juice Bottling Filling Machine

Automatic SS304/316 20000BPH RCGF40-40-12 Juice Bottling Filling Machine RFC 3-in-1 Monoblock

Description:

RINSING SECTION

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

FILLING SECTION

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

The filling valve material is SUS304

The filling system has liquid level automatic control.

Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

Bottle is conveying by the wheel in the filling part.

The juice or other hot beverage can be backflow by return tank to control filling temperature.

?CAPPING SECTION

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

Equipment structure

Base Rotary rinsing unit Rotary filling unit Rotary capping unit Bottle feeder and outlet system Control system

Main configuration

Touch screen: WEINVIEW PLC program controller: Mitsubishi Inverter: Mitsubishi Photoelectrical controller: Omron Proximity switch: Omron Other electrical components: Schneider Pneumatic component: Airtac Water pump: Nanfang Main motor: Siemens Bearing: Harbin

Applications:

1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

2. Pure water/mineral water/portable water

3. Tea beverage

4. Energy drink

Specifications:

Model	RCGF40-40-12
Capacity:500ml	18000-20000b/h
Suitable Bottle:	Height: 150-310(mm) Diameter: φ50-φ92(mm)
Suitable Cap:	Plastic Screw Cap
Filling Pressure:	0.6Mpa
Power	12.08kw
Size	4080×2580×2280mm
Weight	6000kg

Competitive Advantage:

Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted. Sanitary filling head system is of umbrella structure, high filling speed. Recirculation tank system has the function of supplying the material automatically. Perfect filling temperature control system. Perfect CIP system.
