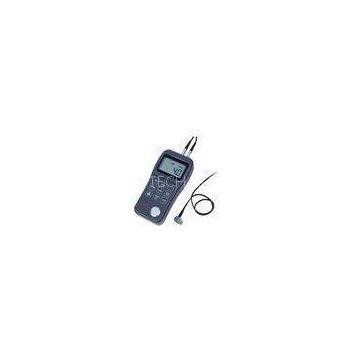

MT170 Ultrasonic Digital Thickness Gauge 0.65mm 600mm with 4.5 Digits LCD

MT170 Ultrasonic Digital Thickness Gauge 0.65mm ～ 600mm with 4.5 Digits LCD

The model MT170 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

1)??? Display:4.5 digits LCD with EL backlight.

2)??? Measuring Range:(0.65～600)mm (in Steel).

3)??? Sound Velocity Range: (1000~9999) m/s.

4)??? Resolution: 0.1mm/0.01mm?

5)??? Accuracy: ±(0.5%Thickness+0.01)mm, depends on materials and conditions

6)??? Units: Metric/Imperial unit selectable.

7)??? Seven measurements readings per second for single point measurement, and sixteen per second for Scan Mode.

8)??? Memory for up to 20 files (up to 99 values for each file) of stored values.

9)??? Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10) Communication:USB1.1.

11) Outline dimensions:150mm×74mm×32 mm.

12) Weight:245g

1)??? Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2)??? Transducer models are available for special application, including for coarse grain material and high temperature applications.

3)??? Probe-Zero function, Sound-Velocity-Calibration function

4)??? Two-Point Calibration function.

5)??? Two work modes: Single point mode and Scan mode.

6)??? Coupling status indicator showing the coupling status.

7)??? Battery information indicates the rest capacity of the battery.

8)??? Auto sleep and auto power off function to conserve battery life.

9)??? Optional software to process the memory data on the PC.

Table 1-1

Operating Temperature: －20℃～＋60℃;

Storage Temperature:-30℃～＋70℃
