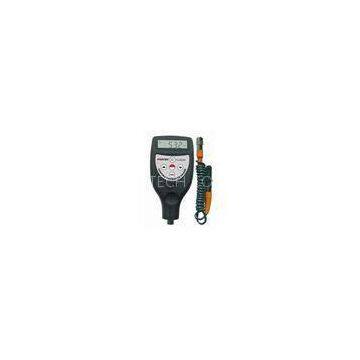

0.3 mm Coating Thickness Gauge TG8826 for non - conductive coating layers
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers
-
Vibration Meter,Digital Vibration Meter,Handheld Vibration Meter,Portable Vibration HG6360
-
Multi - function 10Hz - 1KHz Vibration Meter HG6320
-
Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
-
10mm LCD with blue backlight 10um Ra / Rz Surface Roughness Tester SRT6200
-
Rockwell Hardness Tester HR150P Rockwell Hardness Tester
Product Details
| Brand Name | JIACHUANG | Place of Origin | China | |
| Model Number | TG8826 |
Product Description
Certification:ISO
Description:
With separate probe(s)
Function: TG-8826F (ferrous substrate) TG-8826N (non ferrous substrate) TG-8826FN (2 in 1, F & NF type)
Function: TG-8826F (ferrous substrate) TG-8826N (non ferrous substrate) TG-8826FN (2 in 1, F & NF type)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off????????????????
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
Optional accessories: other range 0-200um to 15000um
Application:?
1. TG-8826F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)?
2. TG-8826N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
?
1. TG-8826F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)?
2. TG-8826N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
?
Standard Delivery of TG8826FN:
Main unit(1250um)??????????????????????? 1
F type probe???????????????????????????????? 1
N type probe???????????????????????????????? 1
F calibration base set?????????????????? 1
N calibration base set?????????????????? 1
Calibration foil set???????????????????????? 1set (4 foils)
Carrying case?????????????????????????????? 1
Instruction manual?????????????????????? 1
Optional Accessories
Cable and software for RS-232C
Main unit(1250um)??????????????????????? 1
F type probe???????????????????????????????? 1
N type probe???????????????????????????????? 1
F calibration base set?????????????????? 1
N calibration base set?????????????????? 1
Calibration foil set???????????????????????? 1set (4 foils)
Carrying case?????????????????????????????? 1
Instruction manual?????????????????????? 1
Optional Accessories
Cable and software for RS-232C
Customized testing range
