Product Details
| Brand Name | JIACHUANG | Place of Origin | China | |
| Model Number | MDW-E |
Product Description
Certification:ISO
Microcomputer Control Electronic Universal Testing Machine, Tensile Tester, Laboratory Equipment
?

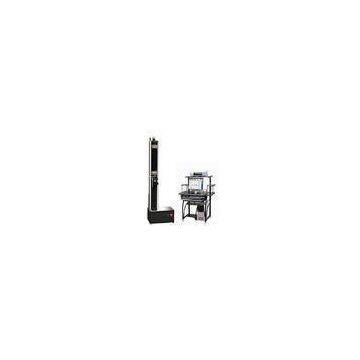

MDW-E Microcomputer control Electronic Universal Testing Machine(Common configuration Gate type)
?
Description:
Series MDW-E Microcomputer control electronic universal testing machine is applicable for tensile tests of material like rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.
?
Specifications:
Main technical parameters | MDW- |
|||||
10 | 20 | 50 | 100 | 200 | 300 |
|
Structural form | ?floor type |
|||||
Maximum testing force (KN) | 10 | 20 | 50 | 100 | 200 | 300 |
Operation mode | Microcomputer control |
|||||
Force measuring range | 2%-100% of the maximum testing force |
|||||
Relative error on indicated values of testing force | Better than ±1%of the indicated value |
|||||
Error on deformation display | ±1% (or±0.5% ) |
|||||
Minimum resolution on the testing force | 0.01N |
|||||
Precision on beam displacement | ±1% (±0.5% ) |
|||||
Deformation accuracy | Better than ±1% (±0.5%) |
|||||
Speed governing range | 0.01-200mm/min |
|||||
Testing travel | Less than700 mm (it can be customized According to the customer needs) |
|||||
Testing space adjusting mechanism | Stepping motor or AC servo motor, synchronization with drive |
|||||
Appearance | As per GB/T2611 |
|||||
Protection function | Overload protection, limit protection. |
|||||
Power supply | 220 V | 380V |
||||
Weight (approximate kg) | 400 | 500 | 600 | 1300 | 2000 |
|
Operating conditions | Ambient temperature -35°C, humidity 20% - 80% |
|||||
Clamp form | Suitable clamps will be configured according to the customer requirements. Special clamps can be customized for the customer. |
