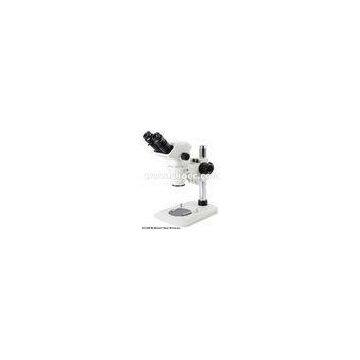

Medical Parallel Stereo Optical Microscope For Research 6.7x - 45x A23.0903-B4
- T/T L/C D/P D/A
- 7 days
You May Like
-
Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6
-
Medical Inspection Stereo Optical Microscope LED Illumination A23.0903-BL1
-
Jewelry Cordless LED Stereo Optical Microscope 10X / 15X A23.0903-BL3
-
Jewelry Lab Stereo Optical Microscope With 360Rotatable Head , CE A23.0903-STL1
-
Outstanding White Gem Stereo Optical Microscope 8X - 35X A23.0904-B4
-
Greenough Binocular Zoom Stereo Optical Microscope Industry Inspection A23.0905-B4
Product Details
| Brand Name | CNOEC, OPTO-EDU | Place of Origin | China | |
| Model Number | A23.0903-B4 |
Product Description
Certification:CE|Rohs
Description:
--0.67~4.5x Zoom Lens, with WF10x/22mm Eyepiece,
--Total Optical Magnification 6.7~45x
--Pole Stand, No Light Source
--Fully Coated Optical System, Sharp & Clear Image
Specifications:
|
A23.0903-B4?Zoom?Stereo?Microscope,?0.67x-4.5x?Specification |
||
|
Head |
Brinocular,?45°?Inclined,?360°?Rotatable,?5°?Diopter?Adjustable,? Interpupillary?Adjustment?54~75mm |
|
|
Zoom?Range |
0.67~4.5x |
|
|
Zoom?Ratio |
1:6.5 |
|
|
Eyepiece |
WF10x/22mm,?Both?with?Eye-cup |
|
|
Magnification |
6.7~45x,?Up?to?2~225x?with?Auxiliary?Lens |
|
|
Working?Distance |
100mm,?With?Standard?1x?Lens.?Up?to?26~287mm?With?Auxiliary?Lens |
|
|
Stand |
Pole?Stand?B4,?With?Focusing?Knob,?Focusing?Range?50mm |
|
|
Illumination |
No?Light?Source |
|
|
A23.0903-B4?Zoom?Stereo?Microscope,?0.67x-4.5x?Optional?Accessories |
||
|
Eyepiece |
WF15x/15mm |
A51.0923-15 |
|
WF20x/10mm |
A51.0923-20 |
|
|
WF25x/9mm |
A51.0923-25 |
|
|
Auxiliary?Lens |
0.3x,?W.D.?287mm |
A52.0928-03 |
|
0.4x,?W.D.?217mm |
A52.0928-04 |
|
|
0.5x,?W.D.?177mm |
A52.0928-05 |
|
|
0.75x,?W.D.?117mm |
A52.0928-75 |
|
|
1.5x,?W.D.?47mm |
A52.0928-15 |
|
|
2.0x,?W.D.?26mm |
A52.0928-20 |
