WF10x 100X Elementary Biological Microscope Research , Rohs CE A11.2601

FOB Price

USD $ $1 - $ $1 / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNOEC, OPTO-EDU		Place of Origin	China
Model Number	A11.2601

Product Description

Delivery Time:5~20 Days
Certification:CE|Rohs

1000X Elementary Biological Microscope Research , Rohs CE A11.2601

Description:

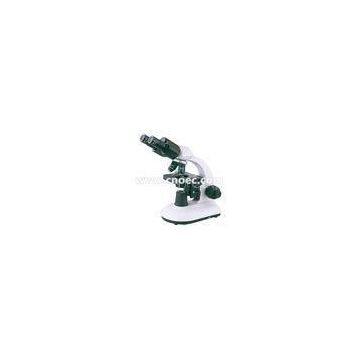

A11.2601 Student Microscope, modern design with high quality optical system, supplying clear image, is good to be used in high school, university for student.

--Anti-fugal optical system
--Wide voltage 80-265V, for all countries
--Built-in blue filter
--LED light source available

Specifications:

Specification	A11.2601-A	A11.2601-B	A11.2601-C
Head	Monocular head, inclinded 30°, rotatable 360°	Binocular head, inclinded 30°, rotatable 360° Interpupillary distance 50-75mm, Diopter adjustable ±5
Eyepiece	WF10x/18mm
Objective	Achromatic 4x/0.1, 10x/0.25, 40x/0.65(S), 100x/1.25(O,S)	Plan 4x/0.1, 10x/0.25, 40x/0.65(S), 100x/1.25(O,S)
Nosepiece	Quadruple nosepiece
Focusing	Coaxial coarse and fine focusing knob, Coarse stroke 22mm, Fine division 2μm, Condenser up-down range 25mm
Stage	Double layer mechanical, size 120X115mm, moving range 76 x50mm
Condenser	Abbe N.A.1.25 with aperture iris diaphragm, Aperture center is adjustable
Filter	Built-in blue filter Φ38.5mm
Light source	6V 20W halogen lamp with brightness control(100V-240V)
Packing	1pc/carton, size 34x24x42cm, G/N weight 6.5/5.5 Kgs

Optional Accessories	Item No.
Head	Upgrade From Monocular to Binocular	A53.2651-B
Upgrade From Binocular to Trinocular	A53.2652-B
Eyepiece	WF5x/20mm	A51.2602-05
WF16x/13mm	A51.2602-16
WF10x/18mm with pointer	A51.2604-10
WF10x/18mm with micrometer 0.1mm/Div	A51.2605-10
WF16x/13mm with micrometer 0.1mm/Div	A51.2605-16
Objective	Achromatic 20x	A52.2601-B20
Achromatic 60x(S)	A52.2601-B60
Plan A chromatic 20x	A52.2603-B20
Plan Achromatic 60x(S)	A52.2603-B60
Light Source	Plano-concave mirror Φ52mm	A56.2611
Upgrade to 3W LED, non-rechargable	A56.2651-3W
Upgrade to 0.3W LED, rechargable	A56.2651-0.3W
Dark Field	Dark field ring for for 4x- 40x objective	A5D.2601-B
Adapter	CCD Adapter 0.5x (Focus Adjustable)	A55.2601-B05
CCD Adapter 1.0x (Focus Adjustable)	A55.2601-B10
Polarizing Kit	Analyzer & Polarizer	A5P.2601-B
