ASTM A956 Automatic metal Hardness Tester with Menu Operation RS232 / USB Interface Hartip 3000

ASTM A956 Hartip 3000 Automatic Hardness Tester with Menu Operation RS232 / USB Interface

?HARTIP 3000 is an advanced hand-held digital metal hardness tester with characters of high accuracy,

wide measuring range and easy operation. It is suitable for testing the hardness of all metals especially

on site for large structure/assembled components. Which is widely used in the industry of power, petro

chemistry, air space, vehicle, machine and so on.

Details:

MEASURING METHOD

The measuring principle of HARTIP series hardness testers is defined as \"the quotient of the impact body\'s?rebound and impact velocity, multiplied by 1000.\" An impact body with a Tungsten Carbide test tip is propelled?by spring force against the test surface and then rebounds back. A permanent magnet is contained within the?impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional?to the velocity of the impact body.

KEY FEATURES

·High accuracy

·Light weight

·For all metallic materials

·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
·Automatic conversion to Brinell, Rockwell, Vicker and Shore
·Test in any directions
·Impact devices: D, DC, DL, C, D+15, E, G
·All impact devices interchangeable
·Menu operation
·Large LCD display with backlight
·RS232/USB interface to PC and micro-printer
·Automatic mean, max., min. value display
·Data management software
·Comply to standard ASTM A956

Principle: Leeb hardness measurement
Accuracy: 0.5%@HL=800
Display: Large graphic LCD with EL backlight
Hardness scale:HL/HRC/HRB/HB/HV/HS
Measuring range:HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8
Impact device: D (standard) DC/DL/C/D+15/E/G (optional)
Materials: 9 common metal materials
Memory: 960 data in 8 blocks
Statistics function: Average / Max. / Min. / value
Interface: RS232 to PC / Micro-printer
Indicator: Low battery
Power off: Auto
Power supply: 1.5v AA battery x 4
Working environment: -40~+80°C (main unit) -20~+120°C (impact device)
Standard: ASTM A956
Dimension (mm): 195x84x38
Net weight (g): 550
Material:????????????????????? ? ? ? ? ?? HL???? HRC???? HRB????? HB????? ? HV????? ?? HS
Steel & cast steel??????????????? 174-960? 19-68? 38-100?? 80-683?? 80-1027? 32-102
Cold work tool st.???????????????? 174-960? 20-67??? --????? ?? --??? ? ? ? 80-900???? --?? ?
Stainless steel???????????????????? 174-960? 20-62? 46-102?? 85-655?? 85-800???? --
Grey cast iron????????????????????? 174-960??? --??? ? ?? --??????? 93-334?? ?? --?????? ?? --
Nodular cast iron????????? ? ? ???? 174-960??? --??? ? ? --??????? 30-390?? ? ? --??????? --
Cast aluminium alloys?????????? 174-960??? --???????? --??????? 20-160?? ? ? --??????? --
Copper/Zinc alloys (brass)????? 174-960??? --??? 13-95? ? ? 40-173?????? --??????? --
Cu Al/ Cu Sn alloys (bronze)?? 174-960??? --???? --?????????? 60-290?????? --??????? --
Wraught copper alloys?????????? 174-960?? ? --???? --?????????? 45-315?? ? ? --??????? --

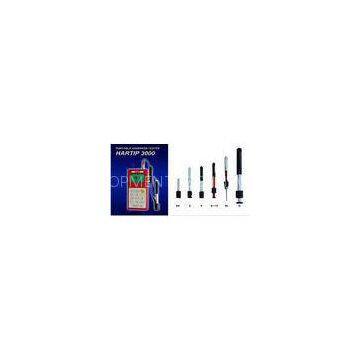

Standard package: Hartip3000 main body? External Impact device D??? Test block D
????????????????? Battery 4×1.5V AA alkaline battery???? Carrying case? Cleaning brush
????????????????? Manual

Optional accessories: Micro-printer???? Impact body DC, D+15, G, C, E, DL ?
????????????????????? Data managing software??? A set or special support rings
????????????????????? Leather case?? Connection cable to PC or Printer
?
