High PressureUltrafine Grinding Mill With Low Price

Capacity:0.4-30 t/h

Feedingsize:0-20 mm

OutputSize:74-5 micron/30-2500 mesh

Appliedmaterial:calcite, carbon black,chalk, limestone,dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds ofmaterials

Mainspecification:

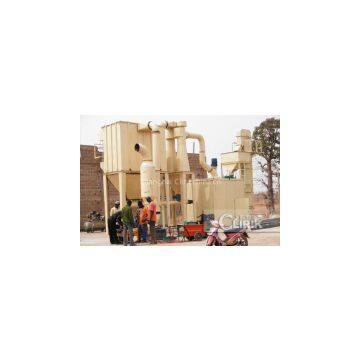

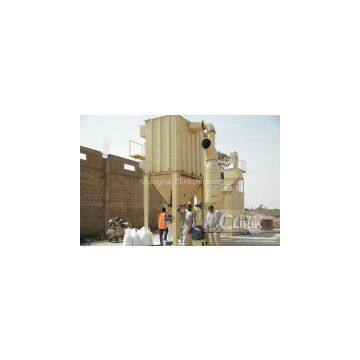

HGM Ultrafinegrinding mill is the equpment to producefine and superfine powder of non-inflammable, non-explosive and brittlemineral, chemical and construction, such as calcite, carbon black,chalk,limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kindsof materials. Especially quite suitable for grinding calcium carbonateaccording to our test and our customers' feedback. We welcome you see ourcalcium carbonate ultr fine grinding mill running in our customers'worksite.

Feature of Shanghai Clirik Machinery:

1.High fineness, flexible adjustment:The final fineness of calcium carbonate ulra fine grinding mill canbe adjusted between 325 meshes and 2500 mesh (47-5 micron), and the productfineness can reach D97≤5μm.

2.High Efficiency:Under the same finished final size and the same motor power, thecapacity of calcium carbonate ulra fine grinding mill is twice as much as jetmill, mixing grinder and ball mill, and energy consumption decreased 30%.

3.Long lifecycle of spare parts:The ring and roller are forged by special material with highutilization,the lifetime can reach 2-5 years for grinding calcium carbonate.

4.High safety and reliability:As no rolling bearings or screws in grinding cavity, there are noproblems caused by bolts shedding or rapid wear of bearings and sealcomponents.

5.Environment-friendly:There are sound-proof house and muffler to reduce noise, dustcleaner to avoid dust flying outsize.

Working principle:

After crushed by hammer crusher, the largematerials become small ones and are sent to storage hopper by elevator, andthen evenly sent to the upper distribution plate of the turn plate by vibratingfeeder and sloping feeding pipe.

When the grinding mill is at work, the mainbearing and each dial are driven by electromotor through reducer, and all thegrinding rollers are rolling in the ring channels driving by dial throughplunger. The materials are driven to the edge of the turn plate by thecentrifugal force and fall down into the grinding chambers.

The high-pressure air blower constantlyinhales air, the airflow with crushed materials are brought to the classifierwhose high-speed impeller will screen the airflow: the unqualified particlesize will fall and return to the mill for being reground while the qualifiedparticle size mixed with air will go into the cyclone powder collector. Most ofthe qualified powders will fall and exit from the discharging valve at thebottom; a small proportion of the fine powders, with airflow, moves to the dustcleaner. The materials from the above two lots are sent by the conveyor to getfinished powders packed. In addition, filtered clean air will be emitted frommuffler in the end.
