0-45t/h High Manganese Steel Barite Grinding Mill With Long Lifetime

Types of 0-45t/h high manganese steel Barite Grinding Mill with Long lifetime:

—— five models: HGM80, HGM90, HGM100, HGM125and HGM1680L
——finished production fineness: 250meshes-2500meshes, 5-74 micron
——the capacity (ton/hour) ranges from 0.4T/H to 30T/H

Barite Grinding Mill    Barite Raymond mill    Barite High Pressure Mill

Barite Vertical Roller Mill    Barite Ball Mill    Barite Powder Production Line

Application of 0-45t/h high manganese steel Barite Grinding Mill with Long lifetime:

0-45t/h high manganese steel Barite Grinding Mill with Long lifetime also is named Barite mill, Barite grinding machine,Barite grinding plant, is suitable for grinding Barite into fine powder.

0-45t/h high manganese steel Barite Grinding Mill with Long lifetime is the new type mining equipment for making micro powders, fine powders,which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.The purpose of the micro powder grinding millis for super-fine grinding materials with hardness less than 9 in Moh's scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.

Structure Of 0-45t/h high manganese steel Barite Grinding Mill with Long lifetime

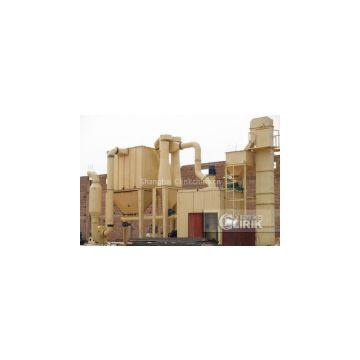

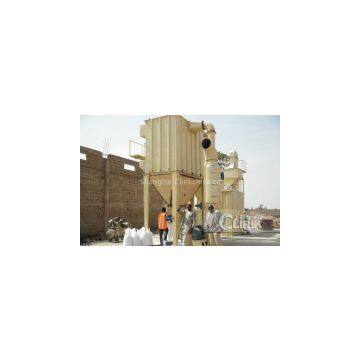

0-45t/h high manganese steel Barite Grinding Mill with Long lifetime Production line: consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.

Work Principle of 0-45t/h high manganese steel Barite Grinding Mill with Long lifetime:

HGM series 0-45t/h high manganese steel Barite Grinding Mill with Long lifetime mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.
