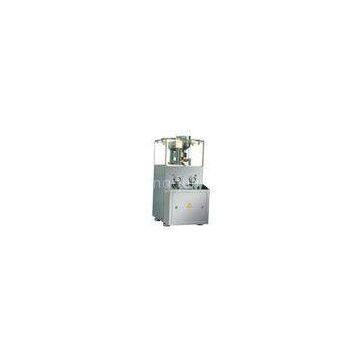

GMP Mini Tablet Press Machine For Foodstuff Industries ,5-20mm dia

Brand Name	wangqun		Place of Origin	China
Model Number	ZP-5A

Delivery Time:7-10 days
Certification:ISO 9001:2000,CE

GMP Mini Tablet Press Machine For Foodstuff Industries ,5-20mm dia

Quick Detail:

Rotary Tablet Press,small tablet press for small scale production conform to GMP requirements Number of Dies:5sets Max. Working Pressure:40kn Warranty:1 year Max. Production Capacity:9600pc/h

Description:

ZP 5/7/9 Rotary Tablet Press is a small tablet press for small scale production, and technical study in pharmaceutical, chemical, foodstuff and electronics industries. It serves as an important equipment to verify the pressing of tablets from granular raw materials. The machine conform to GMP requirements. It is applicable to press granule raw materials (within the pressing scope of the machine), with powder (above 100 mesh) contents no more then 10%. It is applicable to press 5-20 mm circular and irregular tablets and tablets carving with letters. It is not applicable to press tablets with semi-solid or wet particles, hygroscopic, low-melting-point materials, and powder materials.

Applications:

a small tablet press for small scale production, and technical study in pharmaceutical, chemical, foodstuff and electronics industries. It serves as an important equipment to verify the pressing of tablets from granular raw materials.

Specifications:

Items	Unit	Index
		A
Number of Dies	set	5
Max. Working Pressure	KN	40
Max. Dia. of Tablet	mm	13
Max. Thickness of Tablet	mm	6
Max. Depth of Filling	mm	15
Max. Production Capacity	pc/h	9600
Working Diameter of the Turntable	mm	200
Turntable Speed	r/min	0-32
Dia. of middle mould	mm	26
Height of middle mould	mm	22
Diameter of up and down punch pole	mm	22
Length of up and down punch pole	mm	115
Overall Size(L*W*H)	mm	750*550*1100
Net Weight	kg	300
Main Motor Power	kw	1.5
Voltage	v	220-380

Competitive Advantage:

a small tablet press for small scale production pharmaceutical, chemical, foodstuff and electronics industries conform to GMP requirements not applicable to press tablets with semi-solid or wet particles small outside and operate easy to press 5-20 mm circular and irregular tablets and tablets carving with letters.
