High Speed Single Tablet Press Machine With Dia 13mm And Double - Press Mechanism
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Stainless Steel Automatic Tablet Press Machine For Powder Metallurgy Industrial
-
Automatic Rotary Tablet Press Machine 450kn In Pharmaceutical with 11 Sets Dies
-
Block Large Rotary Tablet Press Machine For Chemical Industrial , Anti-Corrosion
-
Lab Single Punch Tablet Press Machine GMP , Flower Basket Tablet Press,small tablet press
-
High Pressing Single Punch Tablet Press Machine For Irregular Tablets,laboratory single-punch tablet
-
15mm Filling Depth Single Punch Tablet Press Machine Auto Lubrication,small lab tablet press
Product Details
| Brand Name | wangqun | Place of Origin | China | |
| Model Number | ZP33 |
Product Description
Certification:ISO 9001:2000，CE

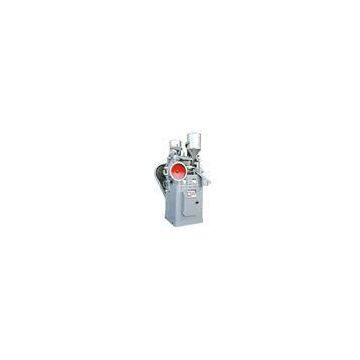

High Speed Single Tablet Press Machine With Dia 13mm And Double - Press Mechanism
Quick Detail:
rotary tablet press,tablet press machine suitable for production in small batches. Production Capacity:43000-110000pc/h Warranty:1 year Main Motor Power:3kw? 380v/50HzDescription:
This machine is designed for the pressing of round tablets from various kinds of granular materials. It is a basic equipment for batch production of tablets, with double-press mechanism. It consists of two sets of feed assemblage and two sets of press roller unit. The turntable carries 33 sets of punches dies, with 66 tablets be pressed for each revolution of the turntable. During operation, the rotation speed, depth of the filling material and the thickness of the tablets are adjustable.
This machine has won the Fine Quality Product Prize awarded by China National Medical Management Bureau.
Applications:
not only suitable for pressing of round tablets from various kinds og granular materials but also pressing of irregular tablets of different geometric shapes. It is particularly suitable for production in small batches.
Specifications:
|
Number of Dies |
33 sets |
|
Max Pressure |
40 KN |
|
Max Dia. of Tablet |
12 mm |
|
Max Depth of Filling |
15 mm |
|
Max Thickness of Tablet |
6 mm |
|
Turntable Rotation Speed |
11-28 r/min |
|
Production Capacity |
43000-110000 pc/h |
|
Motor Power |
2.2 kw,960 r/min,380V/50Hz |
|
Overall Size (L×W×H) |
930×990×1600mm |
|
Net Weight |
850 kg |
Competitive Advantage:
pressing of round tablets from various kinds og granular materials for production in small batches A powder suction unit is attached High production capacity Meet the GMP requirement Chemical industry mostContact Us
